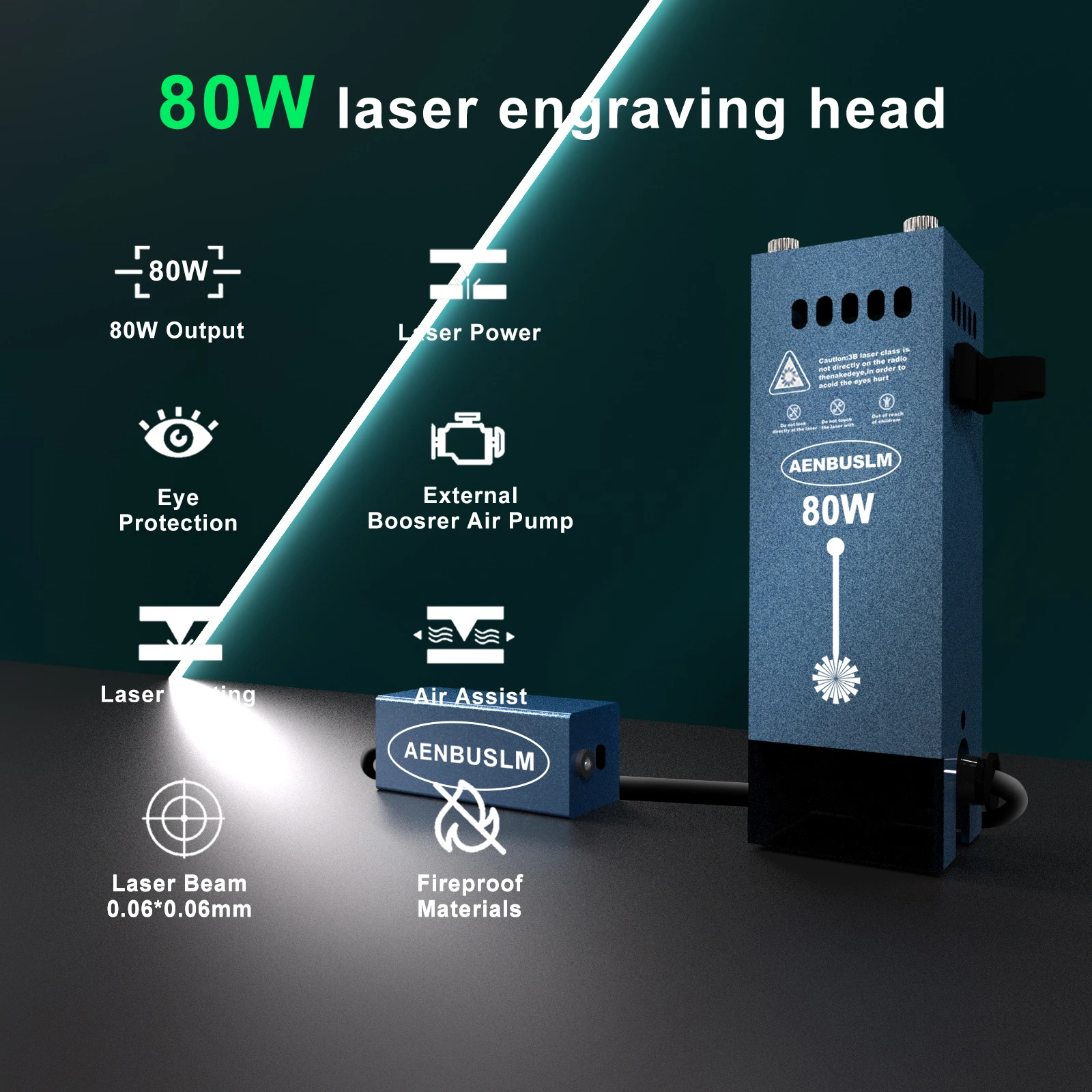

AENBUSLM 40W 80W laser module engraving head with air pump, suitable for laser engraving machine wood board acrylic leather etc

Mainboard upgrade version; this laser module is suitable for 12V/24V laser engravers.

Product Upgrade: The product is equipped with an air pump, so there's no need to purchase an additional air pump.

This product is a new upgrade to laser engraving and air pump in one.

After turning on the air pump, the engraving machine module is connected and you can start working immediately.

The newly upgraded 40W-80W laser module is powerful, with an engraving speed 6-7 times faster than traditional laser modules, and the stainless steel engraving effect is improved.

The laser engraving precision is 3-4 times higher than traditional laser modules, and the conversion is faster and faster.

The exact power and laser power are calculated according to international standards, and the actual power is normal. (The product parameters and product information we describe are the result of rigorous testing)

40W-80W Technical Parameters

Light Source: Blue-shell semiconductor laser

Material: Aviation aluminum

Color: Polar oxygen black

Module Core Material: Copper casing

Optical Output Power: 40W-80W

Focusing Power:

80W Laser Wavelength: 450nm

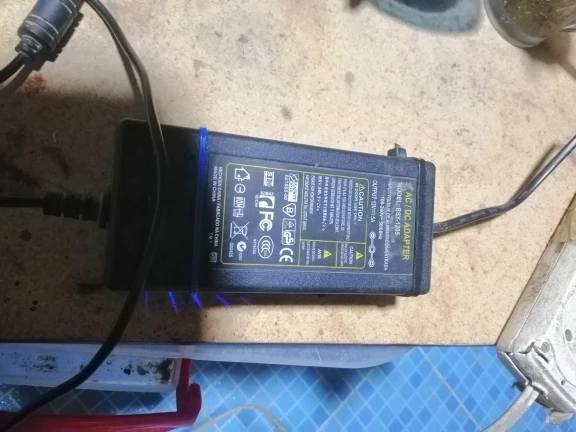

Power Supply Voltage: 12/24V

Power Control: PWM/TTL (signal control voltage 0-5V)

Power Current: 4A

Interface Specifications: 3-pin 2.54mm / 4-pin 2.54mm

Light Shape: Fixed focus (20mm depending on the fixed focus column equipped)

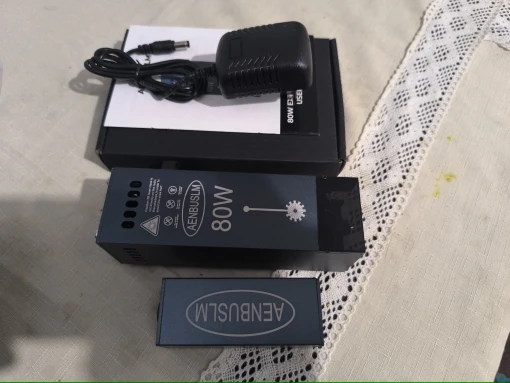

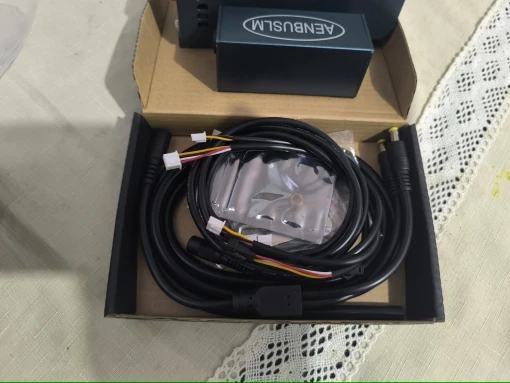

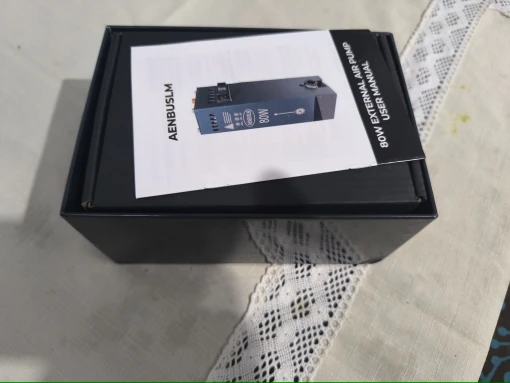

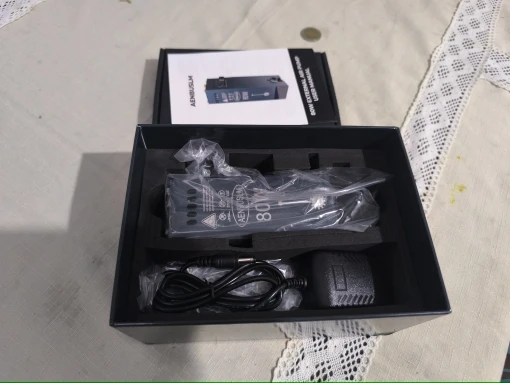

List includes: 4P line*1, 3P line*1, DC short line*1, focal length column*1, laser module*1

20,000 hours lifespan. (If the smoke is hazy, add a fan when carving or cutting.)

The entire body upgrade comes with a laser protection heat dissipation hood, ensuring a longer, more durable, and better quality machine.

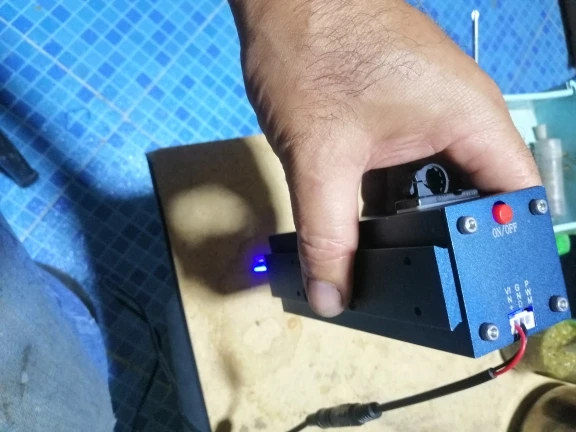

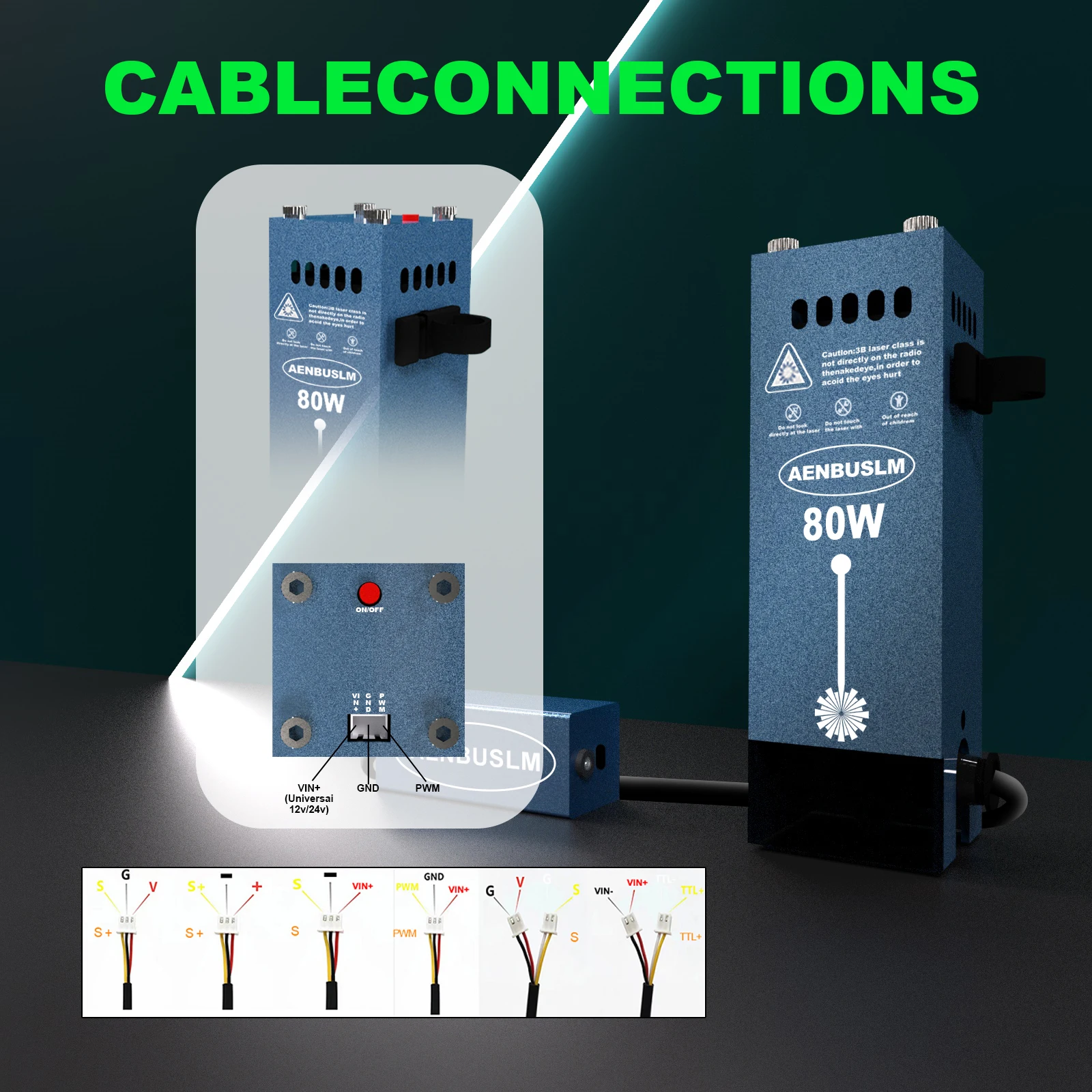

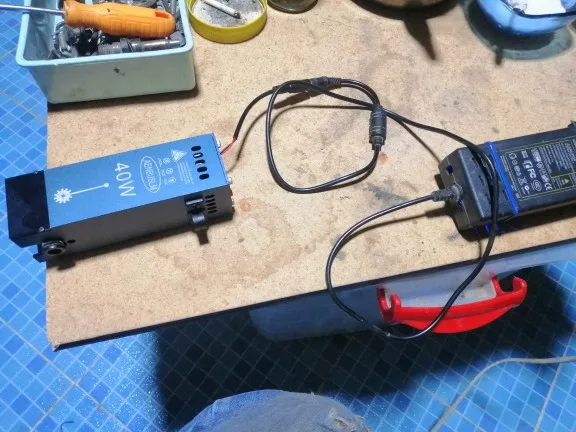

Buyer's Note: Please pay attention to the line order: 3P line connection method, 12V line + red line, GND – black line, PWM + yellow line. Please check carefully if it needs replacing.

Buyer's Note: Please pay attention to the line order: 4P line connection method, 12V + red line, 12V – black line, TTL + yellow line, TTL white line. Please check carefully.

Caution: Only for:

The laser module can be used on 95% of cutting, CNC engraving, and DIY laser engraving machines on the market. Additionally, it is suitable for various materials such as wood, MDF, leather, bamboo, black acrylic, or alumina, realizing your DIY freedom and providing endless fun. (Cannot engrave: blue/purple/white/transparent materials, aluminum without an oxide layer).

The laser module comes with two types of laser shields: the magnetic shield is suitable for use without air assistance, and the adjustable shield is suitable for use with air assistance, allowing you to choose a different enclosure to suit your engraving needs and personal preference. A variety of options are available to provide multiple safeguards for your safety.

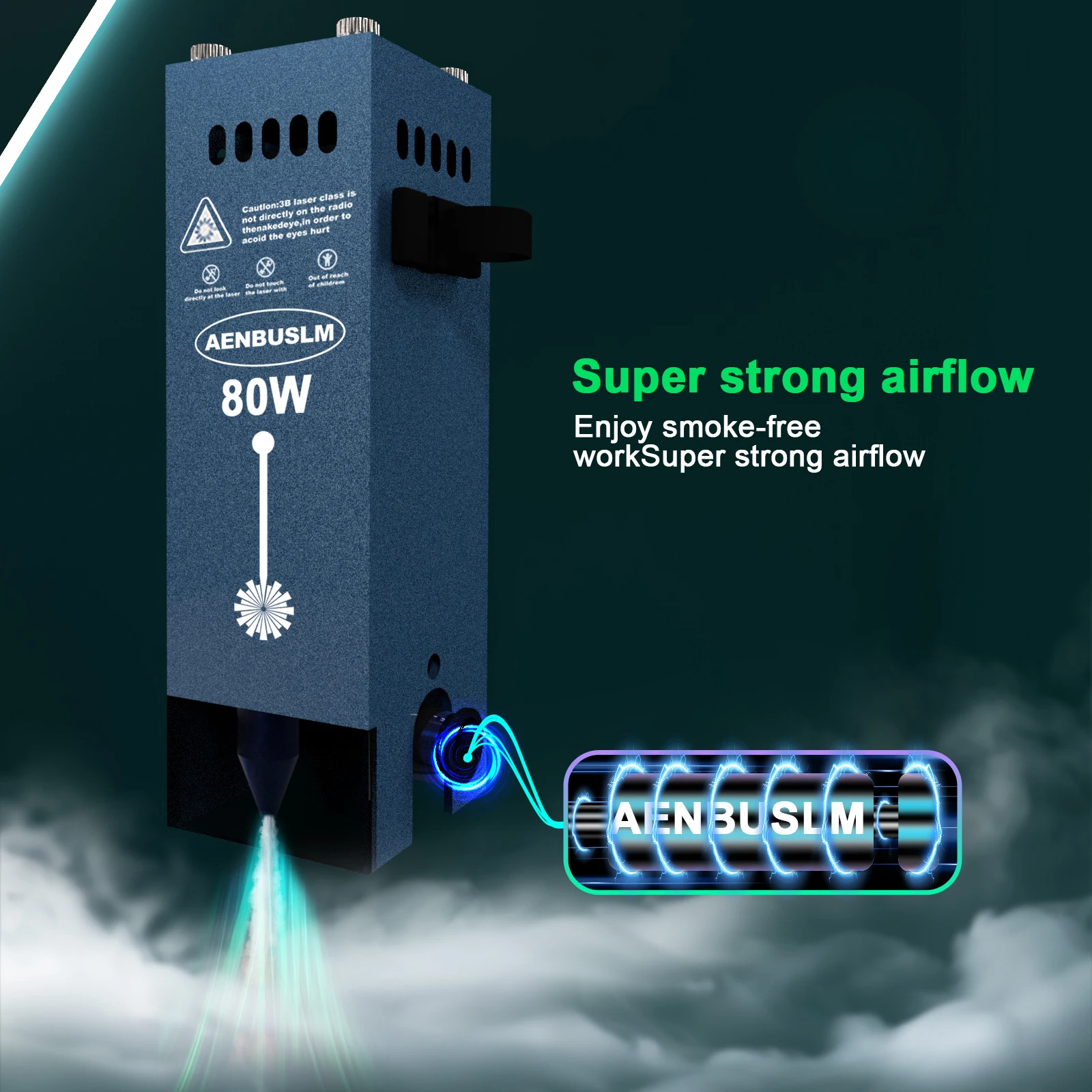

PROFESSIONAL AIR ASSISTANCE AND HEAT DISSIPATION DESIGN: This air-assisted laser module can make material edges cleaner and clearer when cutting/engraving. It can increase the efficiency of the laser cutter, saving time and enjoying concise beauty. The laser cutting module has a built-in fan cooling system. Fan speed is 10,000 rpm. Efficient cooling for a longer lifespan. Only 300-400 MW of power reduction with 100% output power in 30 minutes. Original, high-quality diode with a lifespan of up to 20,000 hours. The removable eye protection cover effectively filters out blue light.

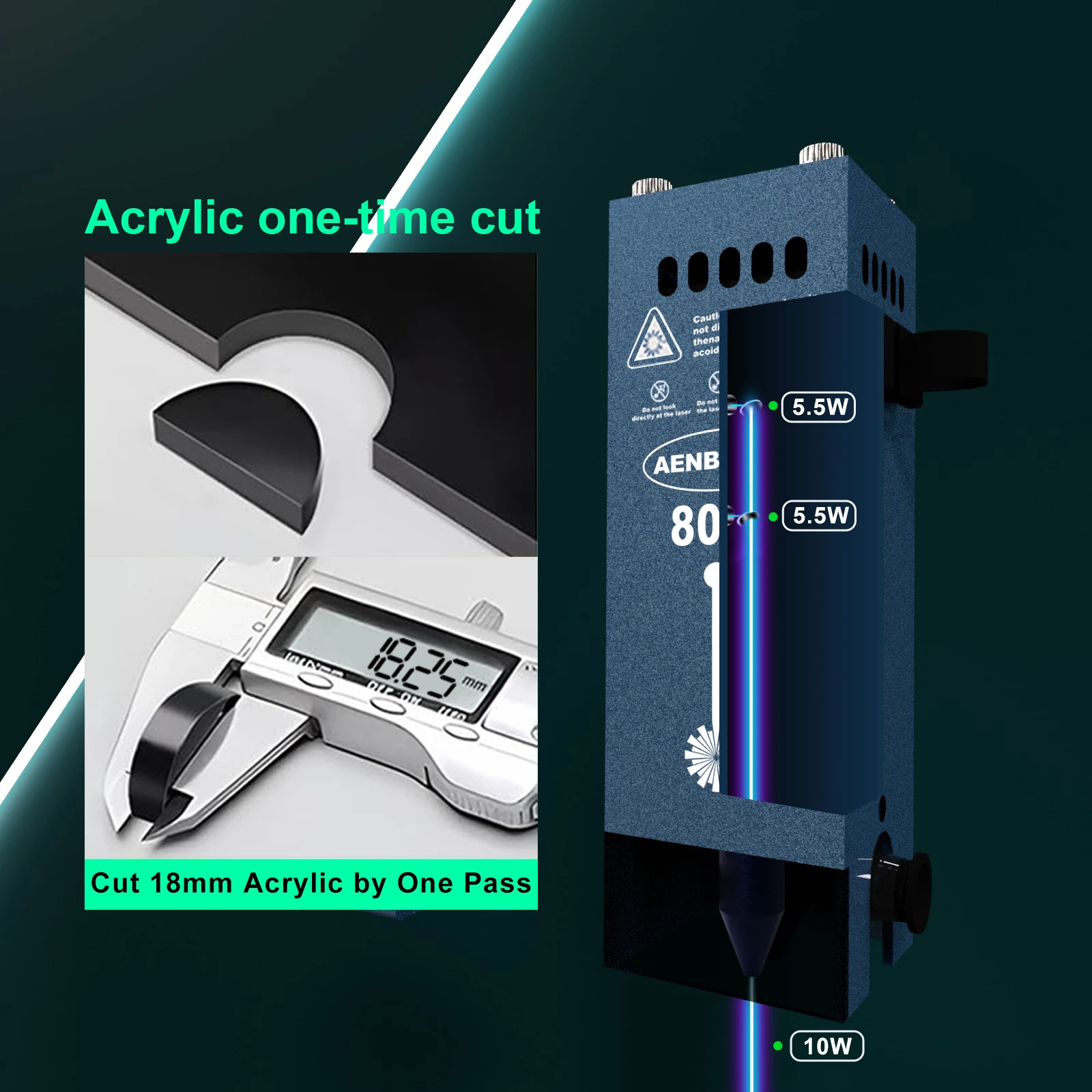

True FAC compression technology: Super-fast engraving speed of up to 400 mm/s on 304 stainless steel. Excellent cutting performance: a speed of 1.6 mm/s for cutting 10 mm plywood, surpassing that of an 80 W laser.

Box list: 4P line*1, 3P line*1, DC short line*1, column focal length*1, laser module*1. Please note the line order: 3P line connection mode, 12V + red line, GND-black line, PWM + line.
