RESIONE GKtwo 8K 3D Printer UV Resin Photocuring Printing 8K LCD 3D Printer 10.3” 8K LCD Printing Size 228*128*245mm

1.Product Specifications：

◆ Product size: 350*315*H455mm

◆ Packing size: 445*420*550mm

◆ Equipment weight: 19kg (including packaging)

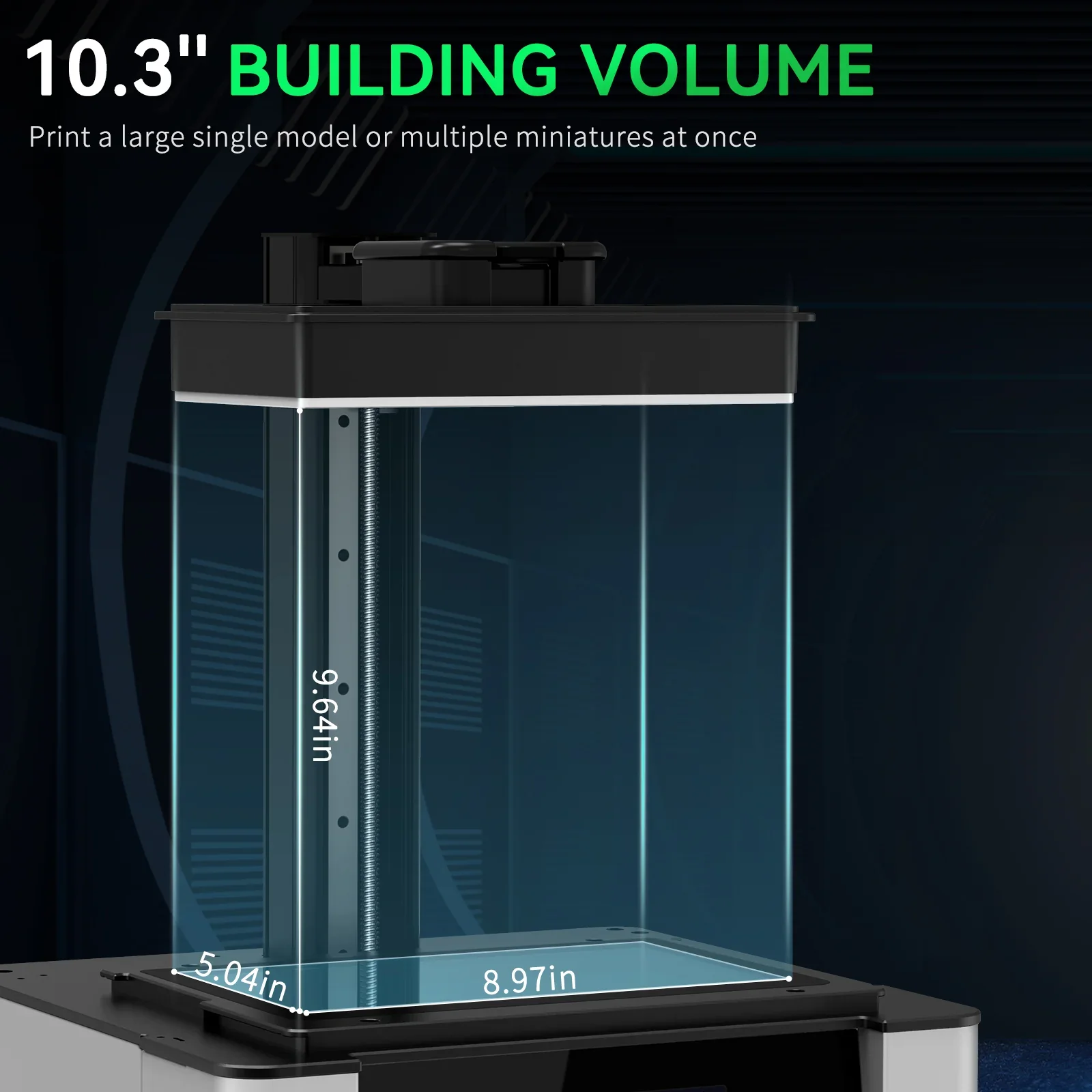

◆ Printing size: 228*128*H245mm (standard plate) 120*120*245mm (small plate)

◆ Exposure speed: 2-3s/layer (0.05mm)

◆ Forming method: LCD surface molding

◆ Forming band: 402.5-405nm

◆ Transmission method: USB

◆ Operating System: Linux

◆ Software support: windows7 (64-bit) and above

◆ Operation method: touch screen operation

◆ Data format: STL

◆ Molding material: rigid resin (black, white, gray, transparent, orange-red)，ABS resin (black, white, gray, transparent blue)

  Elastic resin (black, white), high temperature resin (orange red)

◆ Resolution: 7680*4320

◆ Spot size: 29.6μm

◆ Forming accuracy: ±0.05

◆ Layer thickness: 0.03, 0.05, 0.1mm

◆ Tray capacity: 0.7kg

◆ Automatic heating: 26(±1)℃

◆ Voltage: 110, 220V (production on demand)

◆ Power: 120w for printing, 300-400w for heating (according to ambient temperature)

2.Product Features：

◆ 5-inch high-definition touch screen

◆ 10.3-inch printing area, 8K high resolution

◆ Automatic heating 26(±1)℃

◆ Built-in large-size air purifier to reduce pollution to the printing environment

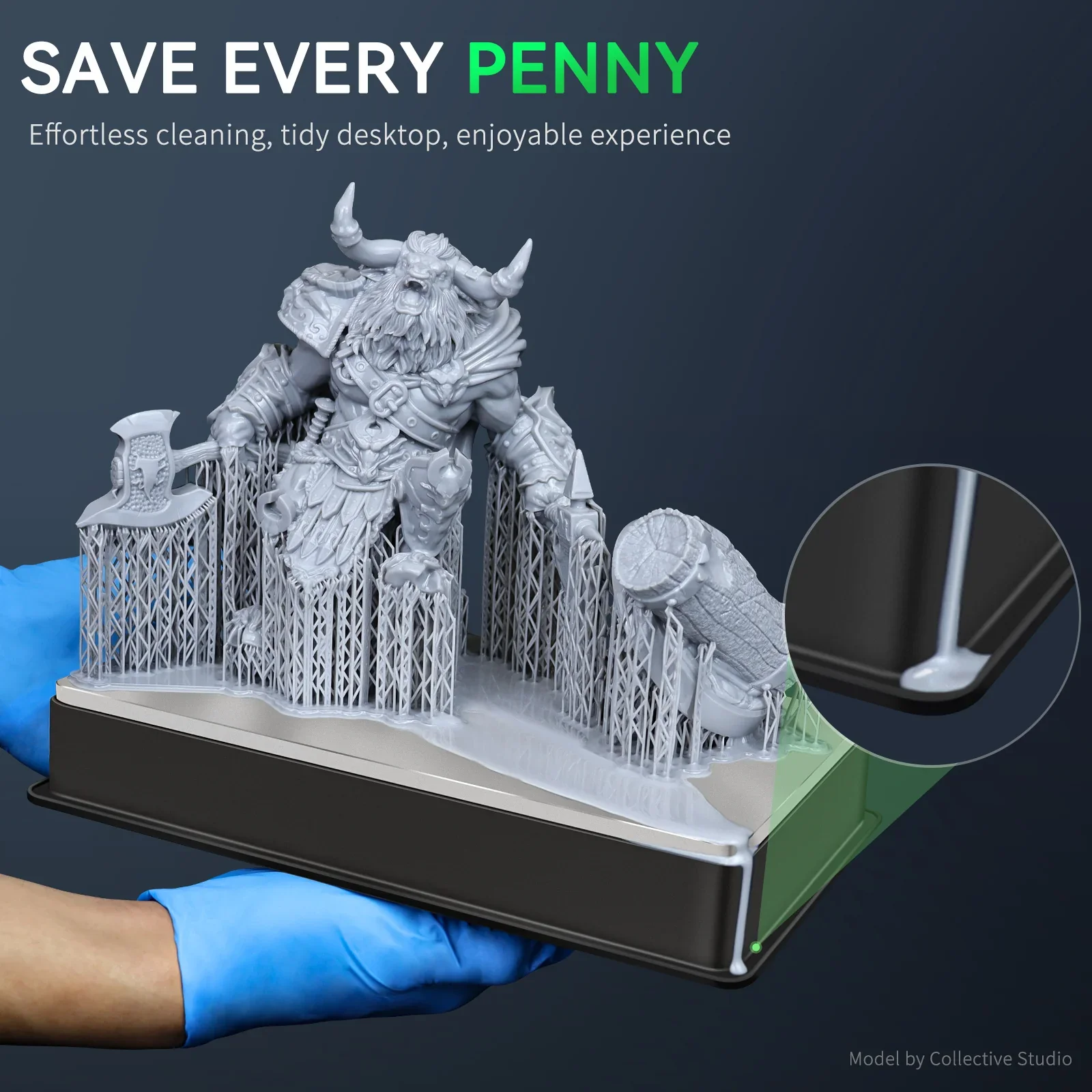

◆ Quick release, anti-backflow printing platform, convenient and clean

◆ It can be equipped with a special automatic washing machine for quick washing

◆ Quick-change LCD forming module

◆ Clamshell design

3. Product application:

◆ Art, figure model making

◆ Printing of related models of dental clinics

◆ Engineering prototype production, small batch production

4. Size Detail：

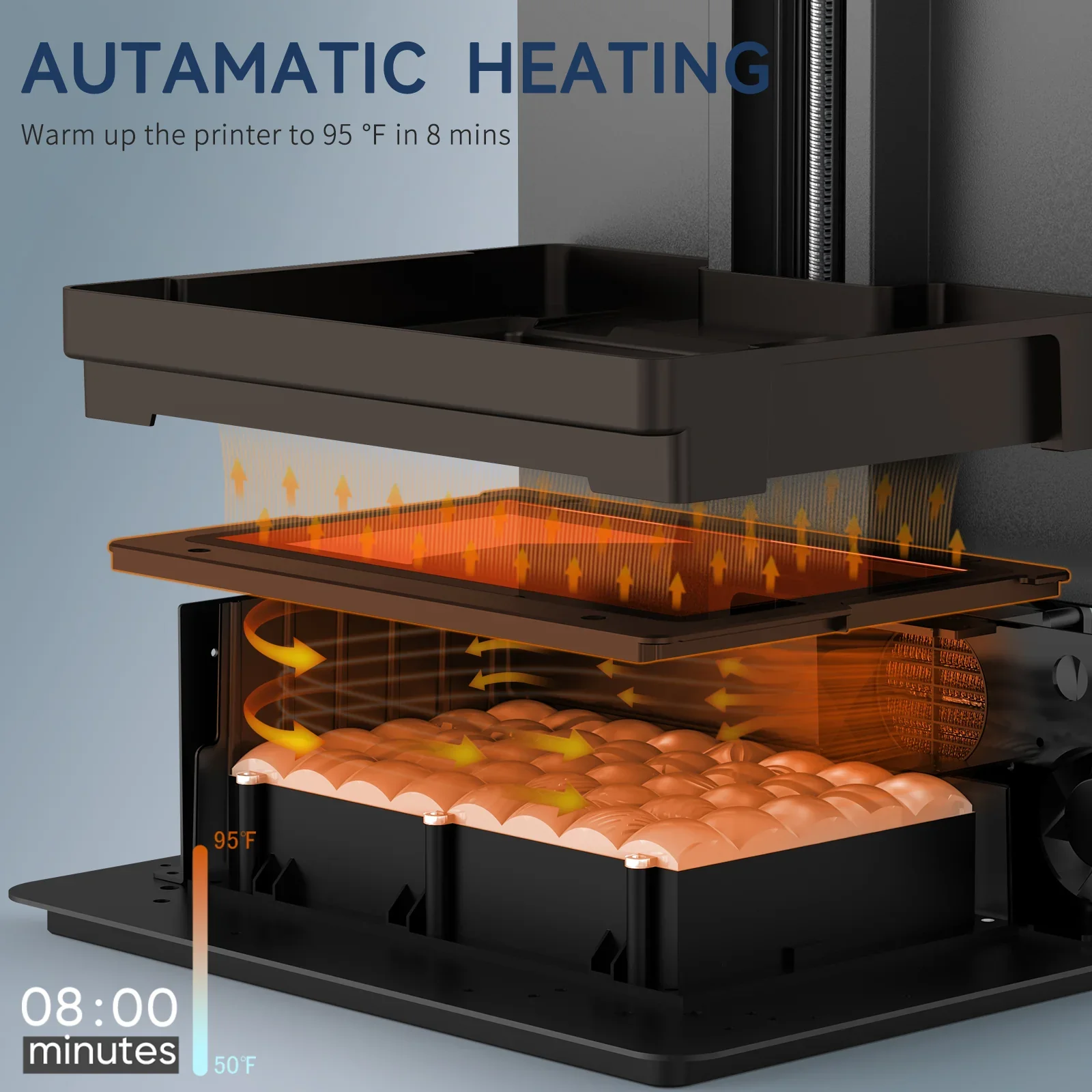

5. Healter:

Can't change the season, but can change the temperature

GKtwo heating configuration

Heating method: PTC ceramic heater

Number of heaters: 2

Heating time: 15 minutes (0-26℃)

Heating power: 300-400w (according to ambient temperature)

Heater life: no less than 10,000 hours

6. Built-in Air filter:

1. Activated carbon air filter, Activated carbon size: 100*100*50mm

 2. Lodinevalue of activated carbon: 1000 (the higher the iodine value, the stronger the adsorption capacity, Max value is 1000)

 3. Main adsorbent: TVOC

 4. Adsorptionfan: 3500 rpm

7. Clamping Design
