Buy Rctosky MARK4 V2 7inch F745 V2 Flight Control 45/60A 4INI ESC rack drone FPV carbon fiber PV Racing Drone Quadcopter Freestyle and . Find more then 6090301 products and Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.

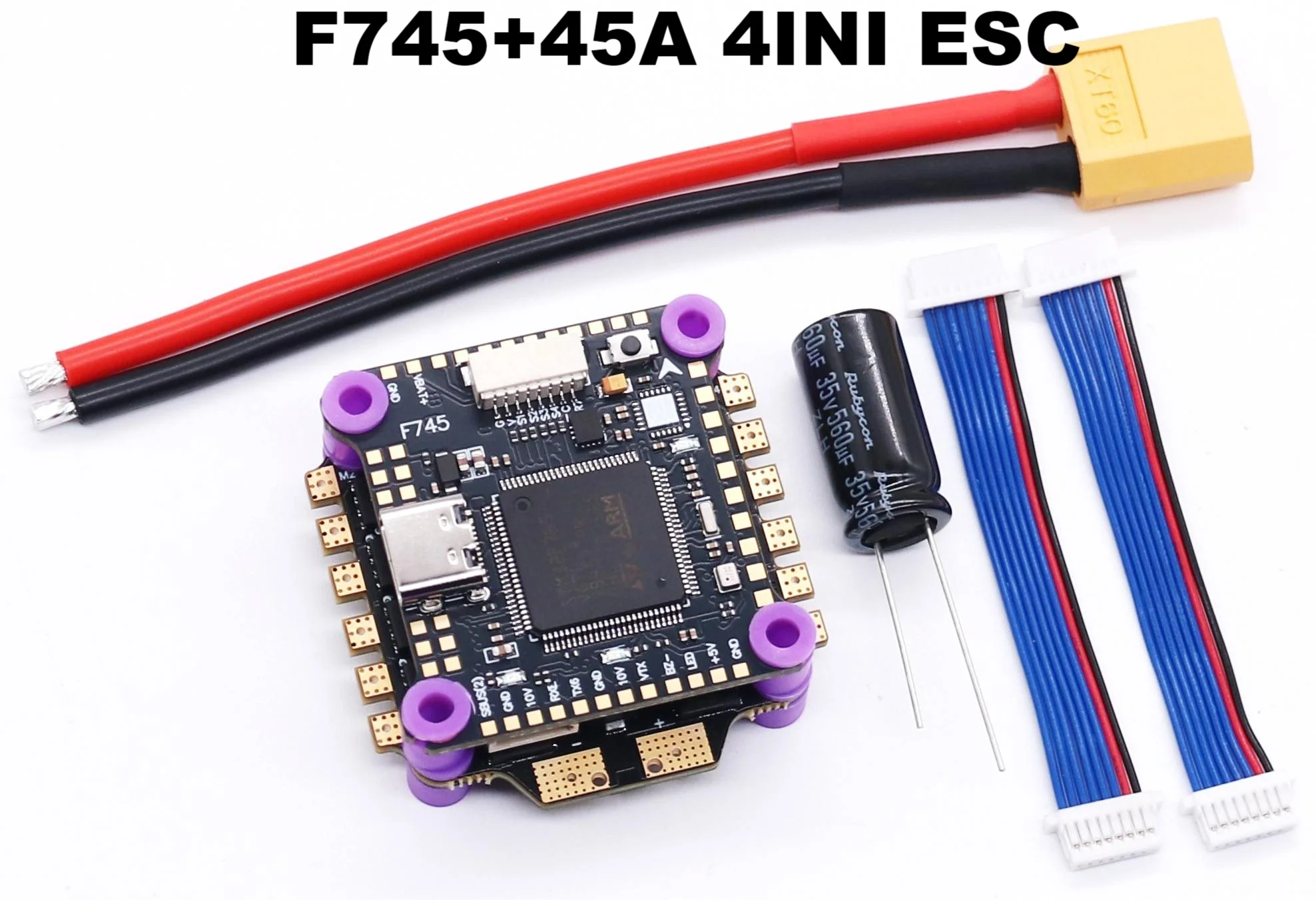

Features: 1. The F745 V2 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference. 2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation. MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity. 3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance. 4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button. 5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Descriptions:
F745 V2 is a major upgrade, offering enhanced performance and precision. It features a CPU upgrade from STM32F745VG to STM32F746VG, boosting processing power for faster response and improved flight stability. The IMU has been upgraded from MPU6000 to ICM-42688-P, providing lower noise, higher sensitivity, and better vibration resistance. These enhancements ensure more accurate flight control, superior gyro performance, and greater reliability. Designed for high-speed FPV applications, V2 delivers smoother flights, faster responsiveness, and exceptional handling in demanding conditions.
Specifications:
Chip:STM32F746VG(216MHZ)
Gyro:ICM-42688-P
Barometer:DPS310
OSD Chip:AT7456E
Black box:16MM
LED Program:Support
BB buzzer:Support
Input voltage:3-6S
I2C Connector:Support
BEC:5V/2.5A
BEC:10V/2.0A
Cam Input:Support
USART:UART1,UART2.UART3.UART4.UART6.UART7
Receiver:ELRS(CRSF).TBS(CRSF).SBUS.IBUS.DSM2.DSMX
GPS:YES
COMPASS:YES
HD O3:YES
ESC Signal:Dshoot150.Dshot300,Dshot600
USB:TYPE-C
Current Port:Yes.
Voltage Sensor:Yes
DFU Button:YES
FC firmware:betaflight_4.4.2_JHEF745V2.HEX / inav_8.0.0_JHEMCUF745.HEX
Install hole:30.5*30.5*4MM
Board size:36*36MM
Weight:7.5g
BLHELI_S 45A /60A 4IN1 3-6S Brushless ESC

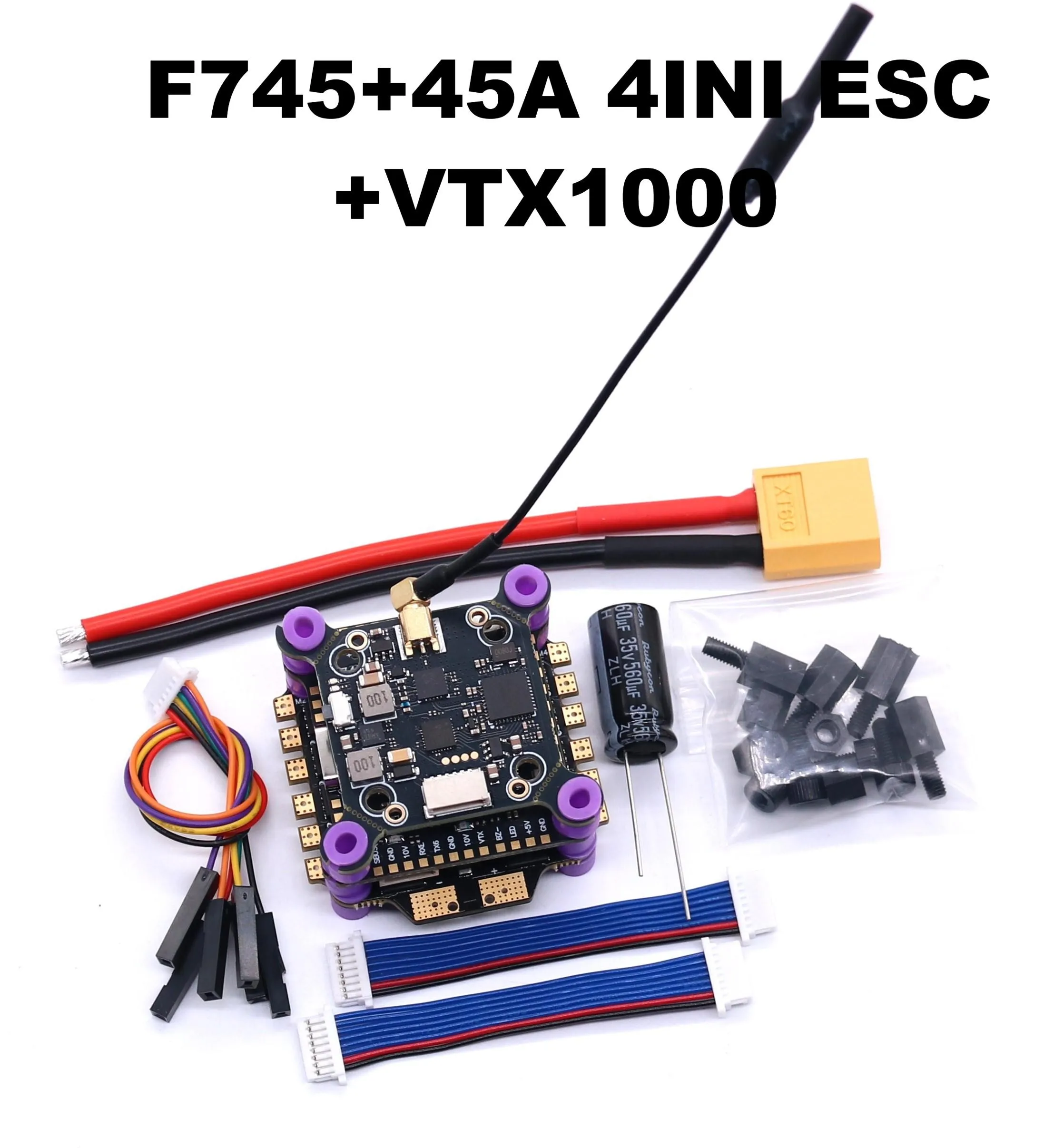

VTX1000 1W Video Transmitter
Description:

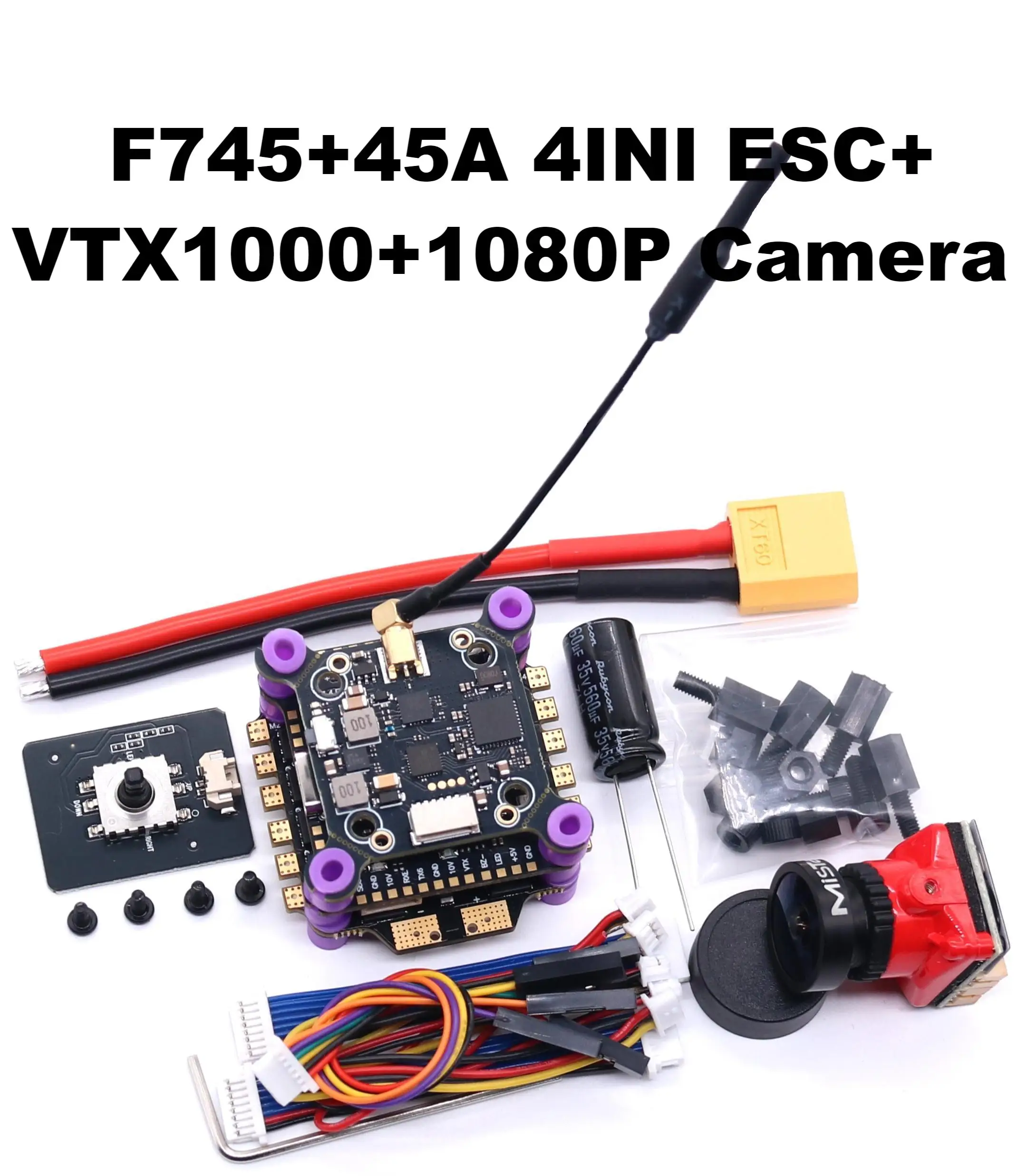

Model: MINI MS-1672 FPV cameras
Sensor: 1/1/8 "CMOS D1080H
Horizontal resolution: 2000TVL
Horizontal field of view: 165
Lens: 2.1mm lens
Video format: NTC&PAL (adjustable)
Image scale: 4:3&16:9 (automatic recognition)
Wide Dynamic Range: Super WDR
Noise reduction: 3DNR
Low illumination: 0.001LUX
Video output: CVBS
Day and night: external/internal/black and white/color
Channels: 6 Channels Model Type: Glider/Heli/Airplane RF Range: 2.40-2.48GHz ban dwidth: 500KHz ban d: 142 RF Power: Less Than 20dBm 2.4ghz System: AFHDS 2A and AFHDS Code Type: GFSK Sensitivity: 1024 Low Voltage Warning: less than 4.2V DSC Port: PS2;Output:PPM Charger Port: No ANT length: 26mm*2(dual antenna) Transmitter Weight: 392g Package Weight: 676g Transmitter Size: 174x89x190mm Package Size: 23.5×21.2×10.6cm Power: 6V 1.5AA*4 Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight. On-line update:yes Color: Black Certificate: CE0678,FCC Model Memories: 20 Control Range: 500m
FS-iA6B Receiver Specifications:
Item Name: FS-iA6B Channel: 6 Frequency Range: 2.4055–2.475GHZ ban d Width Number: 140 Transmitting Power: ≤ 20dBm RF Receiver Sensitivity: -105dbm 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system Encoding: GFSK Antenna Length: 26mm * 2 (dual antenna) Input Power: 4.0-6.5V DC Dimension: 47 x 26.2 x 15mm Weight: 14.9g Package Weight Color: Black i-Bus Interface: Yes Data Acquisition Interface: Yes Model Type: Airplane / Glider / Helicopter Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
Package Included:
1 x FS-i6 transmitter 1 x FS-iA6B Receiver 1 x Manual
