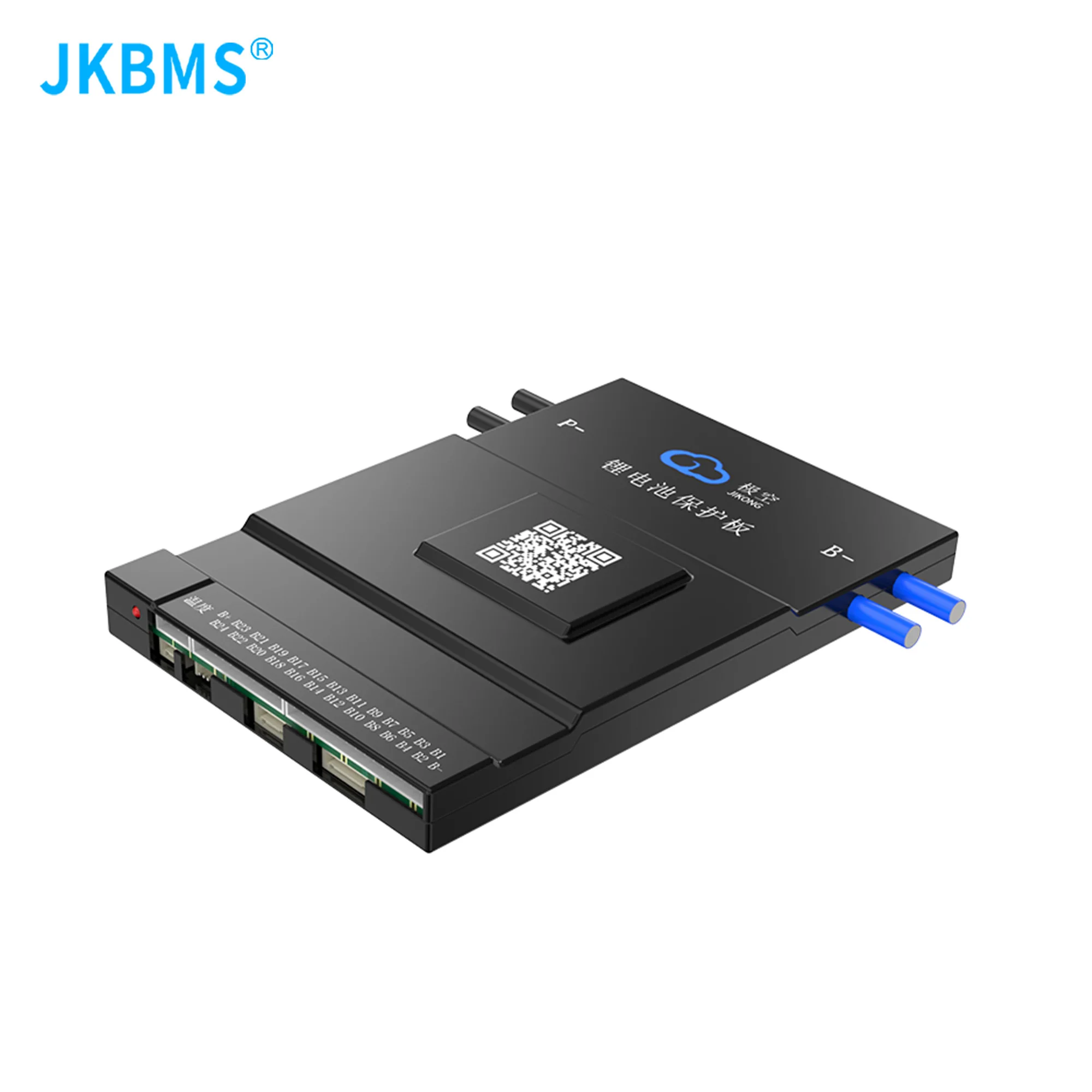

JK BMS B1A24S15P 1A BALANCE CURRENT BMS 150A BT 36V 48V 60V Li-Ion LTO 18650 Battery Lifepo4 Battery Storage Bluetooth Bms
Buy JK BMS B1A24S15P 1A BALANCE CURRENT BMS 150A BT 36V 48V 60V Li-Ion LTO 18650 Battery Lifepo4 Battery Storage Bluetooth Bms at Gearbest for . Find more 5090301 products and Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
123.32$ – 128.00$

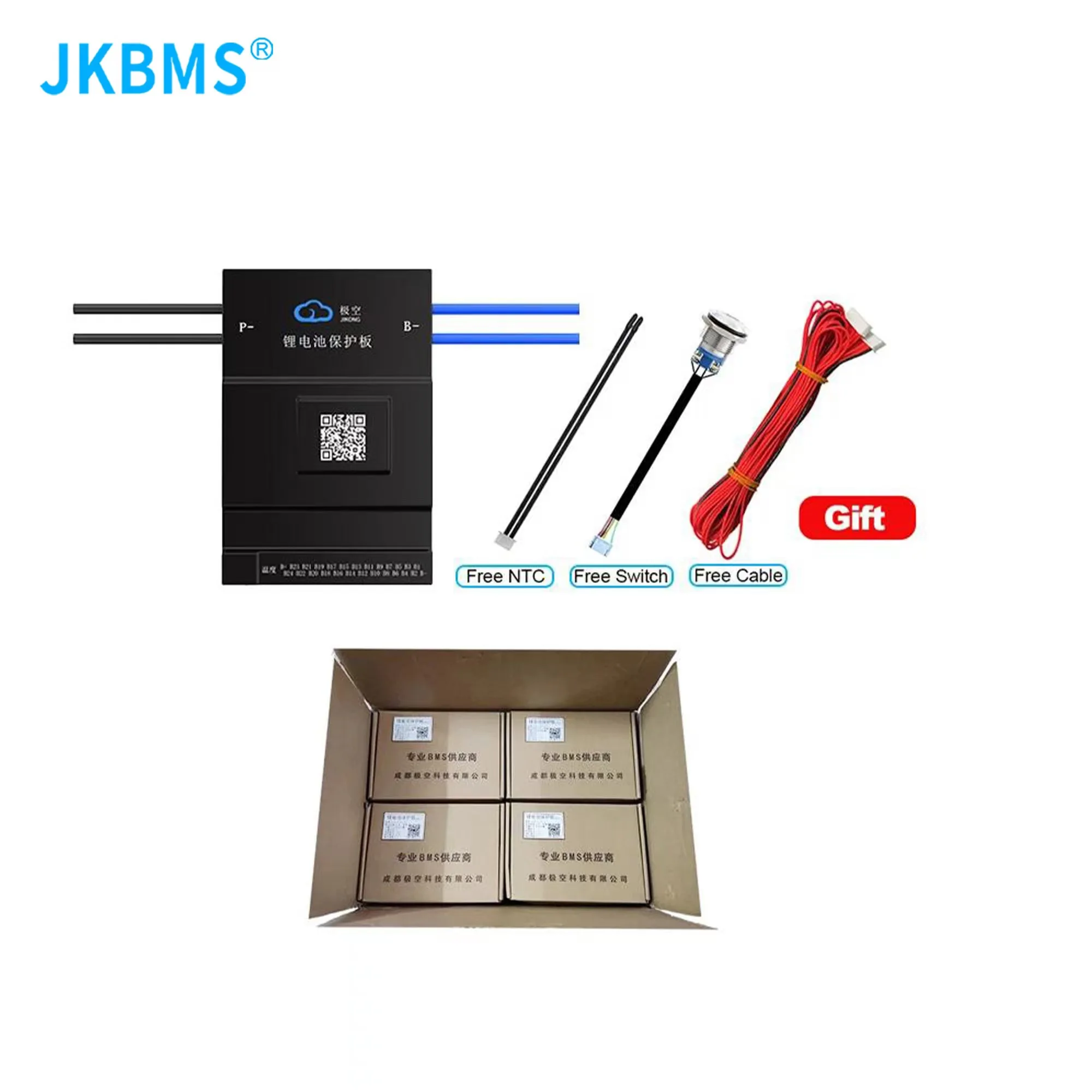

☆Package
BMS{Bluetooth bulit-in}
* Temperature sensor(40cm)
* Balance Wires(75cm)
* Active Switch(15cm)
*Heating cable(Only for BMS With Heat Function)
H:BMS With Heat Function
C:BMS With CANBUS chip Bulit-in
NOTE: For instructions on heating cables,
the green 5PIN cable of the heating cable needs to be linked to the heating pad,
and the rest of the black and red cables are linked to the smart charger
(after the smart charger links the BMS,
it detects the temperature of the battery through the BMS,
which automatically monitors the charging status of the battery)
Heat Function interface
Description of heating function:
Battery temperature is below low temperature charge protection, turn off charging, turn on heating.
Cryogenic charge protection is a parameter that can be set within APP
The heating power depends on the battery voltage and the resistance value of the heating film.
Battery voltage U.
Heating resistance R.
Power equals U*U/R
Heating current I=U/R;
The maximum I (current) of the board design is 3A.
MAX heating power 200W(100W OF B2A8S20P).
☆ Pls buy the accessory from the following link.
https://www.aliexpress.com/item/1005006031699580.html
☆ Bluetooth link for Phone-JK BMS
Download link-IOS : Search (JK BMS) in the APP STORE
Download link-Andriod :Search (JK BMS) in the Google STORE
Specification: JK BMS B1A24S15P 1A BALANCE CURRENT BMS 150A BT 36V 48V 60V Li-Ion LTO 18650 Battery Lifepo4 Battery Storage Bluetooth Bms
|
