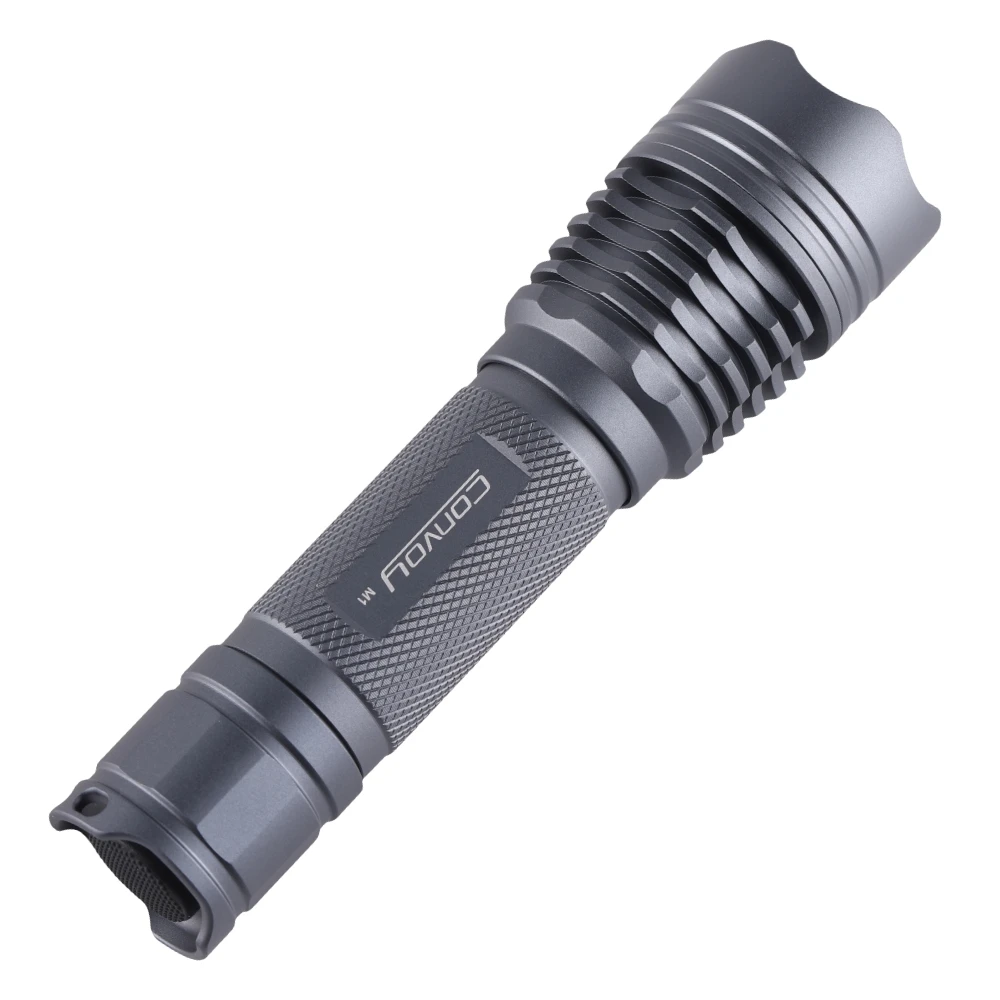

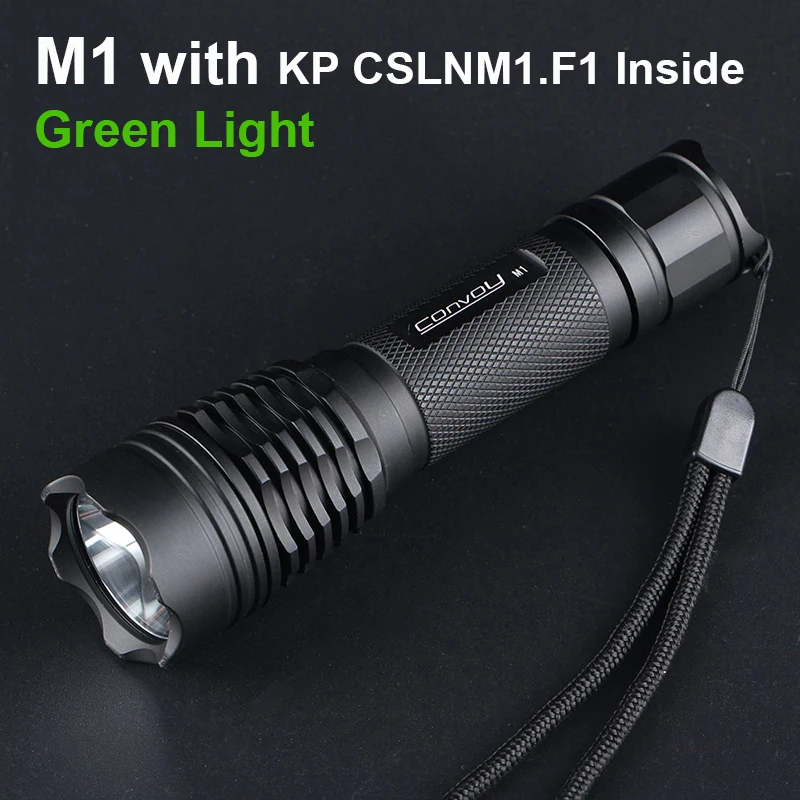

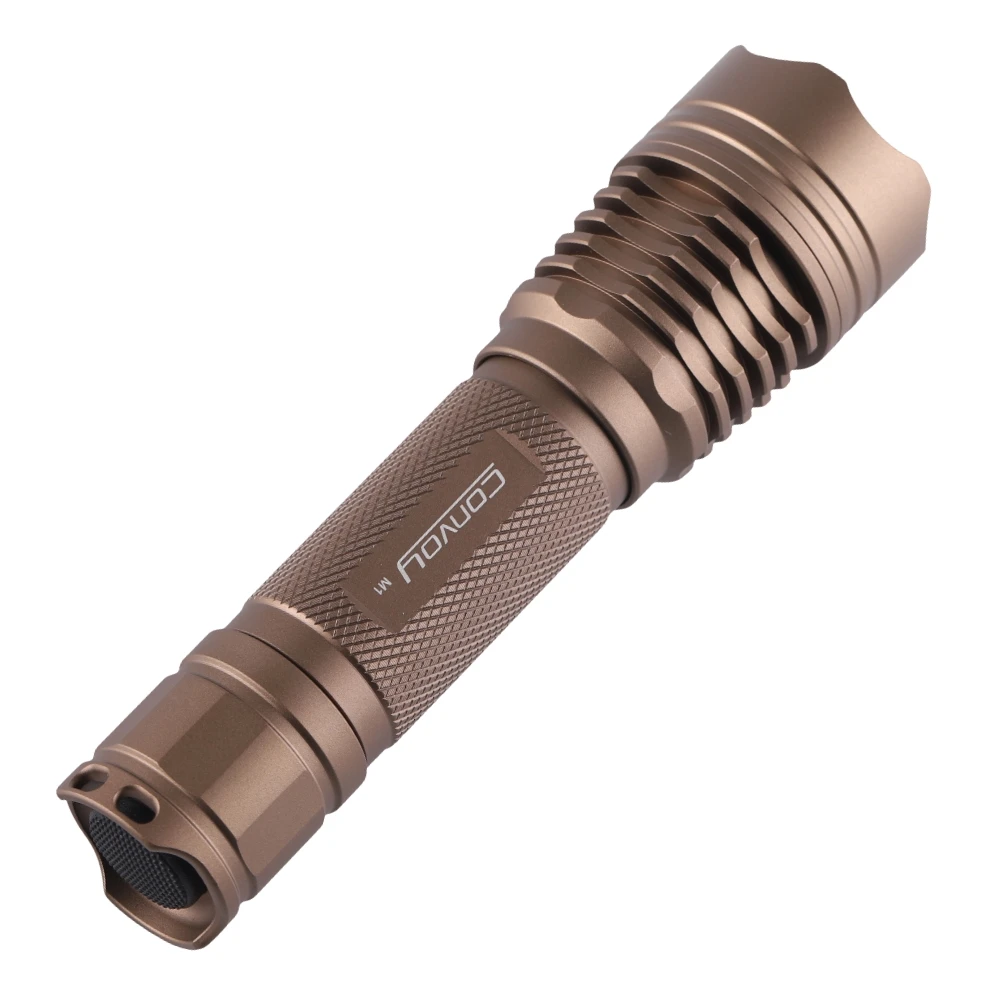

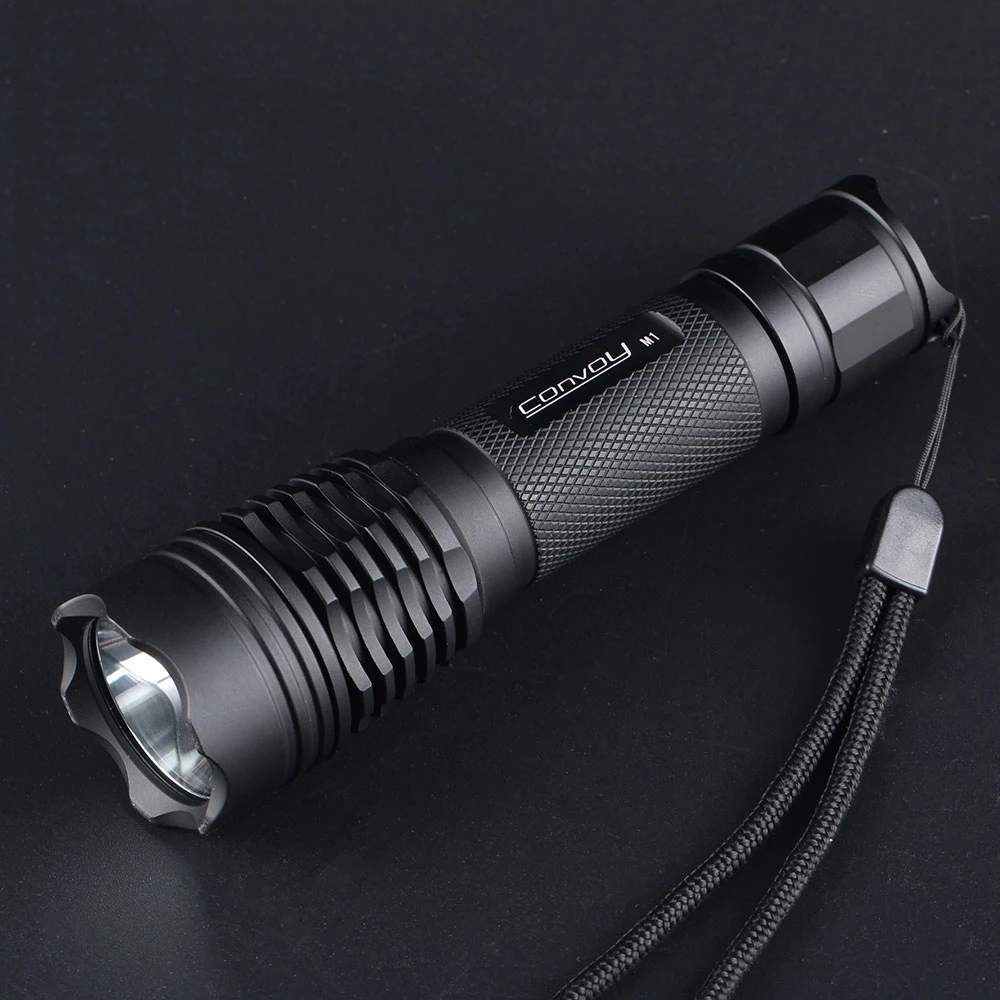

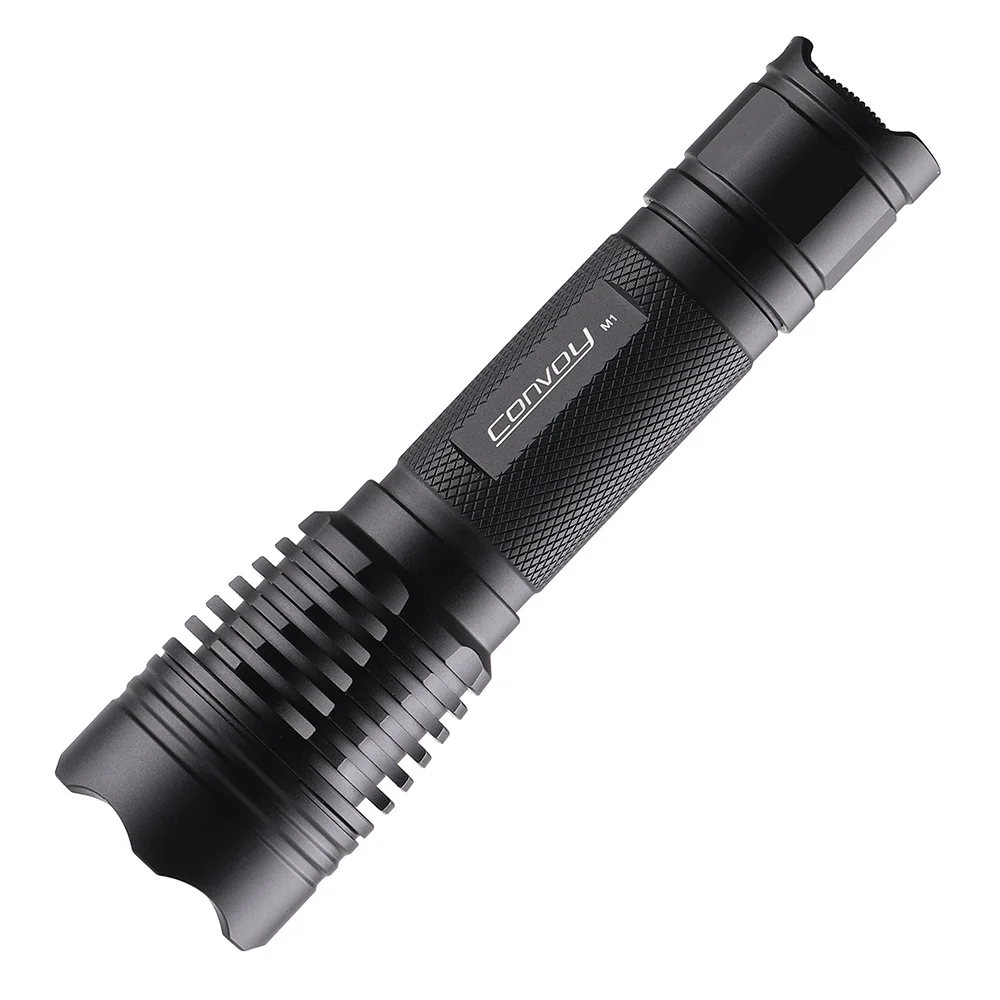

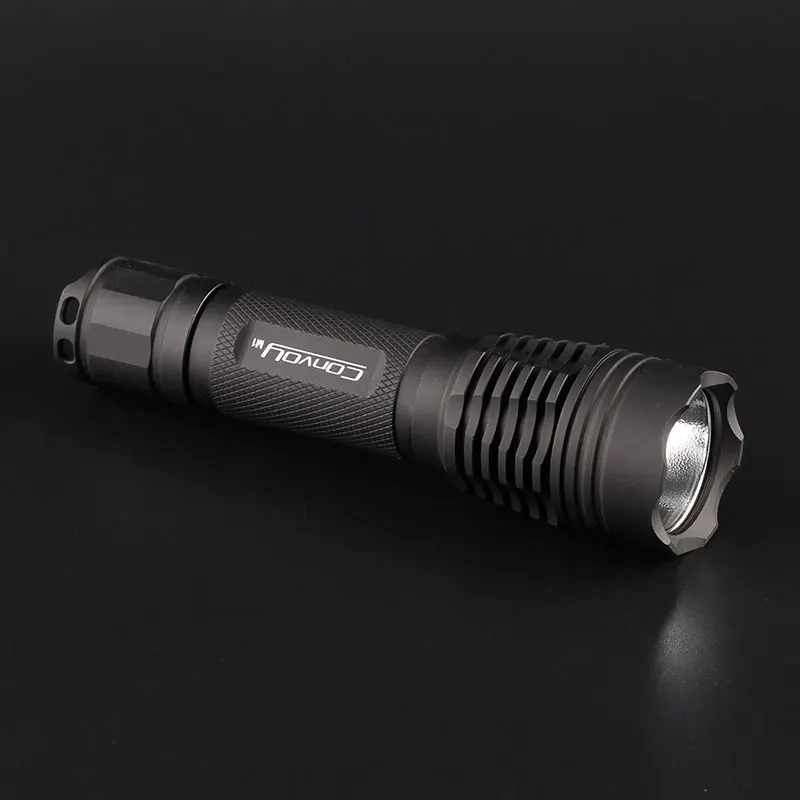

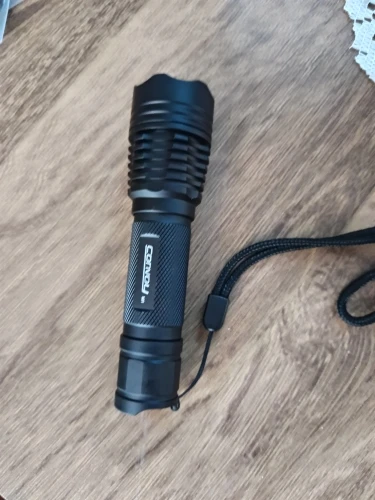

Green light Convoy M1 Flashlight with KP CSLNM1.F1 Led Lanterna 18650 Torch High Powerful Hunting Camping Flash Light

Parameter:

Material: Aluminum Alloy
LED: KP CSLNM1.F1 green light
Low voltage warning: Yes
Reverse polarity protection: Yes
Lens type: Glass
Reflector: Smooth
Mode memory: Yes
Tailstand: Yes
Required battery type: 18650 lithium battery (protected or unprotected)
Required battery quantity: 1pcs
Diameter(Head/Body/Tail): 35.6 / 24.9 / 26.8 mm
Length: 133.6 mm
Weight: 110g

Package type:

A. With 18650 battery:
1*M1 Flashlight
1*18650 rechargeable battery
1*USB charger
1*Rope

B. No battery:
1*M1 Flashlight
1*Rope

1. Driver instructions:(4 modes)

Which has a simple 4 modes for switching, which is very suitable for ordinary users.
Modes : 0.1%-3%-30%-100% max current output is 6000mA
Its biggest advantage is that no frequency can be seen in any mode, and there is temperature management.
It can control the flashlight temperature not to exceed 55 degrees Celsius,
If the flashlight temperature is below 55 degrees Celsius, it will output full current. If it is above 55 degrees Celsius, it will constantly adjust the current so that the flashlight will not overheat.

2. Driver (12 groups):

1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turnedon,tap the switch 20 times quicklyto enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
Option 1(normal-flash 1 time + buzz-flash):tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
————-sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
————-sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
————-sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
————-sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
————-sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
————-sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
————-sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
————-sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
————-sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
————-sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
————-sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
————-sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
Option 2(normal-flash 2 times + buzz-flash):tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
