FLSUN V400 is equipped with klipper firmware and ultra-light short-range extruder design, double-drive wire feeding structure+5-1 reducer+36 high-temperature high-precision stepping motor, and the extrusion force can reach 70N, meeting the requirements of 600mm/s High-Speed Printing & 8000+ mm/s² acceleration.
【FLSUN Speeder Pad】
7-inch wide angle IPS screen Pre-installed full Klipper firmware ( Klipper, Moonraker, Mainsail, KlipperScreen, WebCAM, etc.）, plug and play, no additional configuration is needed.
【Unique robotic arm design】
3K grade material using the same process as high-end drones. Thickened to 10mm in diameter, high strength carbon fibre rod + aerospace aluminium housing + POM bearing wear resistance. Zero clearance lightweight and high strength design, gathering structural rigidity and positioning in one.
【Self-developed levelling algorithm】
through 25 points to compensate for machining errors, easily solve the first layer problem. Supports broken material detection.

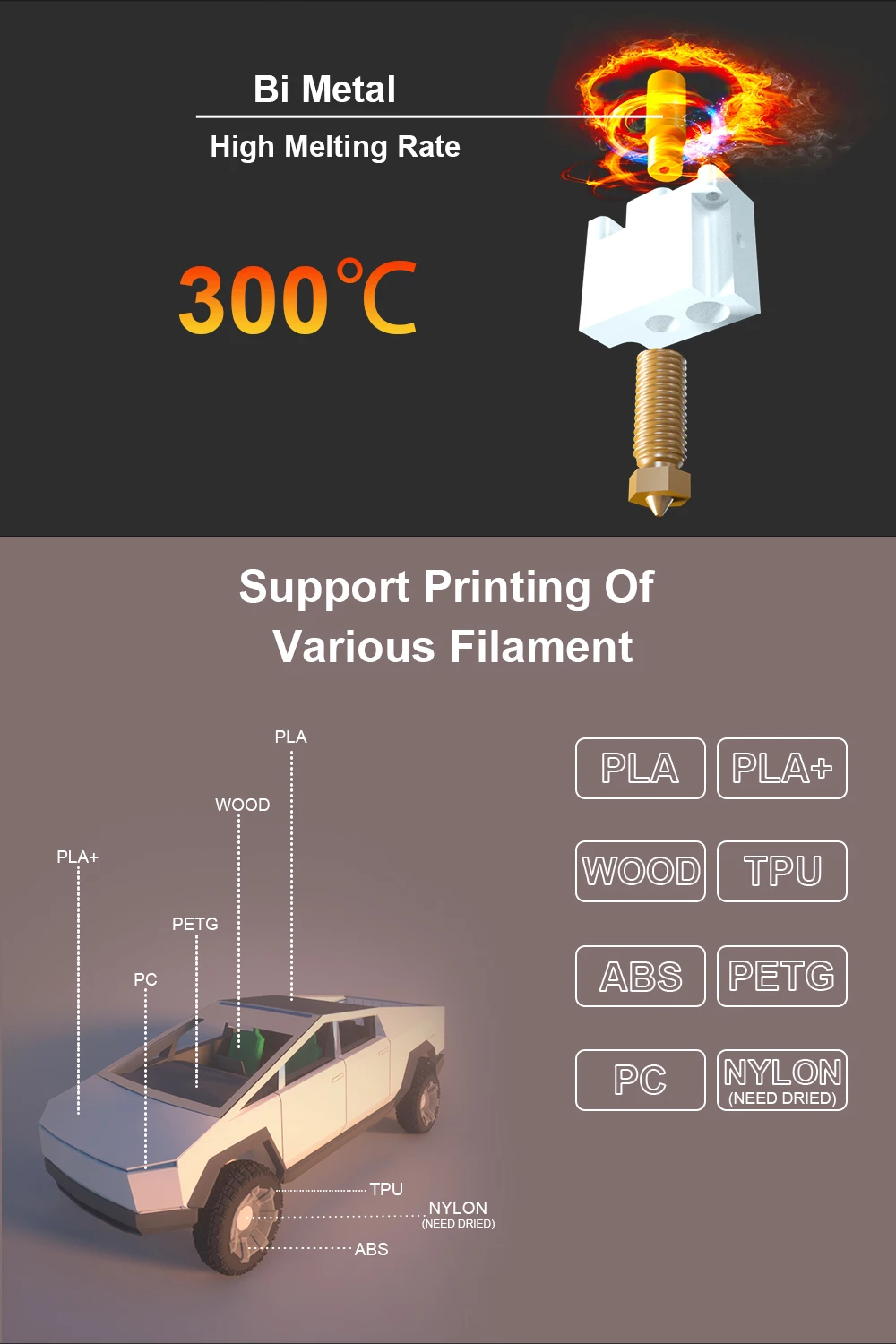

【Bi metal 300℃ high-temp nozzle】
Allow you to choose more kinds of filament like PLA PLA+ WOOD TPU ABS PETG PC NYLON(NEED DRIED).

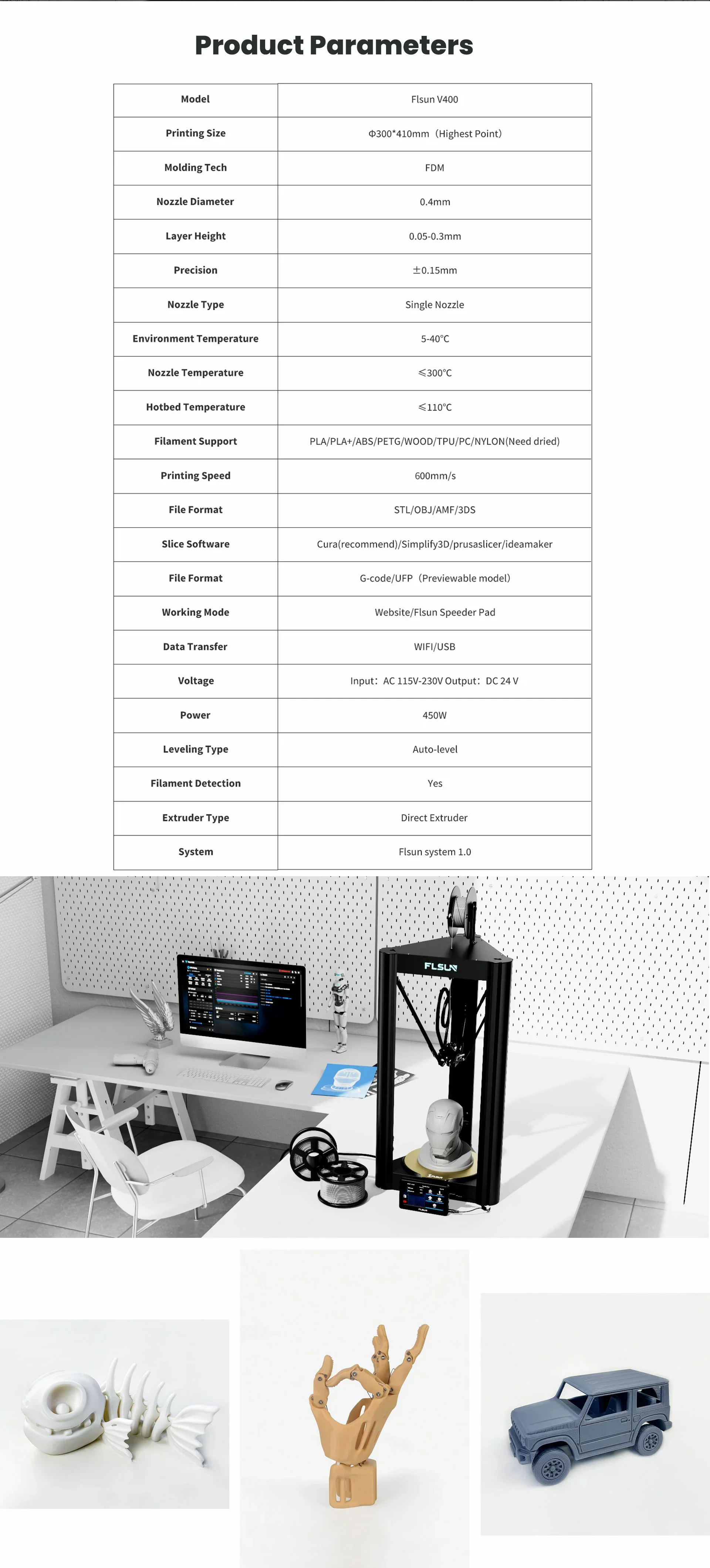

Specification

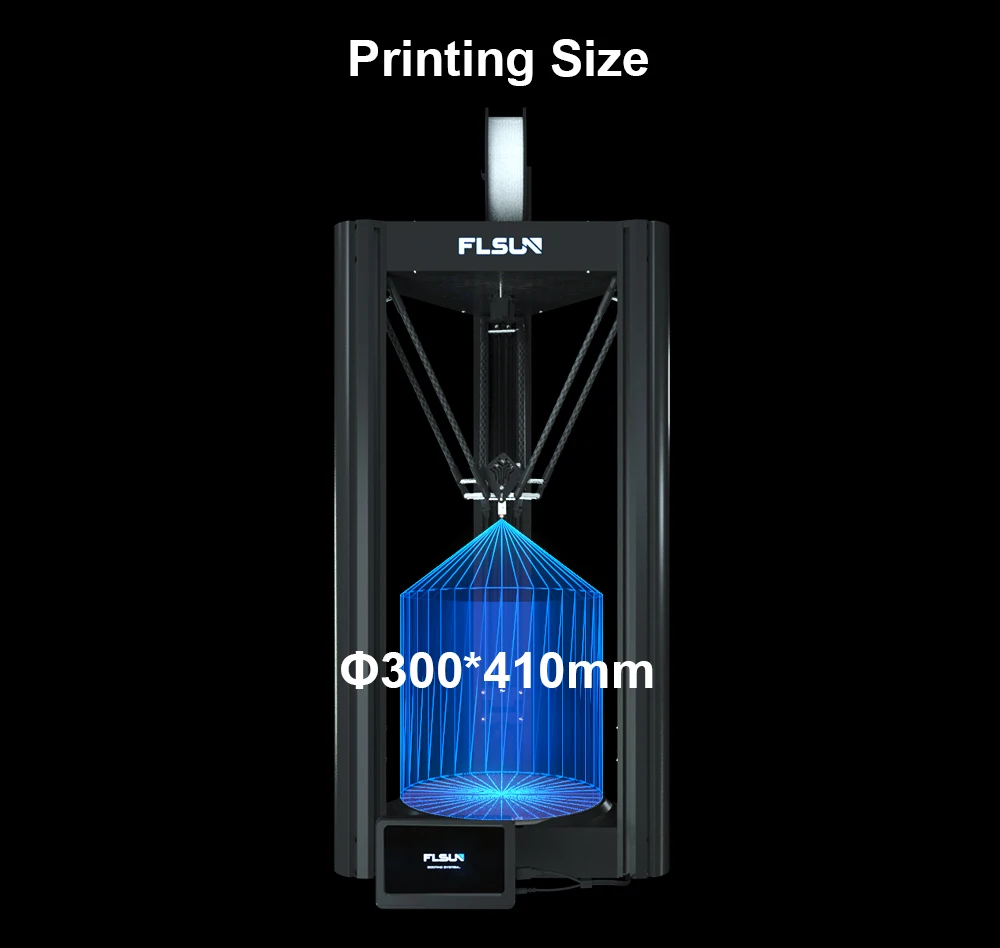

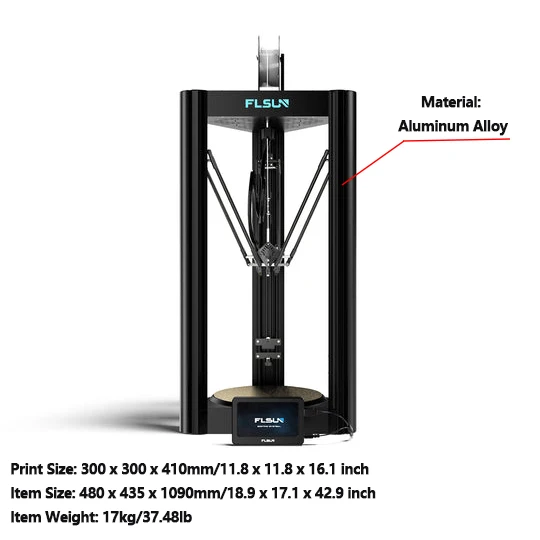

Model: FLSUN V400 Material: Aluminum Alloy Molding Tech: FDM Nozzle Diameter: 0.4mm Filament Support: PLA/PLA+/ABS/PETG/WOOD/TPU/PC/NYLON(Need dried) Precision: ±0.15mm Nozzle Type: Single Nozzle File Format: G-code/UFP（Previewable model） Filament Diameter: 1.75mm Slice Software: Cura(recommend)/Simplify3D/prusaslicer/ideamaker Working Model: Website/Flsun Speeder Pad Voltage: Input：AC 115-230V Output：DC 24V Nozzle Temp: ≤300℃ Bed Temp: ≤110℃ Leveling Type: Auto-Leveling Power: 450W Print Accuracy: + / – 0.15 MM Leveling Mode: Automatic Leveling Control panel: 7-inch interactive smart screen Printing Speed: Max 600mm/s Print Model Format: STL,OBJ,AMF,3DS Extruder: short distance extruder Print Size: 300 x 300 x 410mm/11.8 x 11.8 x 16.1in Item Size: 480 x 435 x 1090mm/18.9 x 17.1 x 42.9in Item Weight: 17kg/37.48lb Package Size: 103 x 46 x 19cm/40.6 x 18.1 x 7.5in Package Weight: 20kg/44.09lb
Q&A
1.What type of motherboard is used in V400?
The V400 uses the MKS nano v2.1 motherboard with klipper firmware.
2.What is the type of driver used in the V400 and what is the range of current passing through it?
V400 using 2226 driver with 1.5-2A current.
3.What is the belt type and length and width of the V400?
V400 belt model GT2, width 10mm, single length 1458mm.
4.What are the nozzle types and available nozzle models for the V400?
The nozzle used in V400 is our own designed high melt nozzle, the profile size can be adapted to the crater nozzle, but the printing speed needs to be reduced when printing. v400 supports 0.2/0.3/0.5/0.6/0.8 caliber nozzle, but the configuration parameters in cura4.13 should be modified simultaneously.
5.What is the maximum temperature that the nozzle and hot bed of V400 can reach?
The nozzle can reach up to 300 degrees and the hot bed can reach up to 110 degrees.
6.How many ways are there to print on the V400? What are they?
There are 2 types of printing methods, namely U-disk printing and WEB-side printing
7.What kinds of print model file formats does the V400 support? What are they?
There are two formats, gcode format and ufp format (ufp format can show the model thumbnail).
8.What are the hot-side fan and motherboard fan models for the V400?
The hot-side cooling fan is 4010, the hot-side turbo fan is 4510, and the motherboard cooling fan is 6015.
9.Are the V400's heating rod and temperature sensor the same as the SR's?
The V400 heating rod and temperature sensor use a longer wire than the SR heating rod and temperature sensor, and the V400 heating rod has a power of 60W, which heats up faster and warms up more.
10.How to check the LOGO/LED light of V400 is not on?
Open the upper case of the machine, exchange the LOGO and LED jacks on the adapter board in the state of disconnection, turn on the machine and turn on the LOGO/LED lights to see if they can light up and down normally. To determine whether the LOGO / LED light problems or adapter board problems.
11.V400 machine can't connect to WiFi, what should I do?
1.After entering the wrong password, the network cannot be found. After reboot, you can delete and re-enter the password to connect.
2.It shows connected, but there is no ip address. The interface is: eth0 (network cable connection), you need to reboot the system to wlan0 (wireless connection), wait a while and the ip will appear.
3.There is an ip address, but the web side is inaccessible and shows an error. This indicates that the ip address has changed and you need to reboot to show the new ip.
Note: The connection must be made under the same LAN, after the PAD is successfully connected to WIFI, it will always be the same IP as long as the WIFI is constantly on.
12.What should I do if the nozzle hits the hot bed when the V400 is descending?
1.It may be caused by incorrect leveling steps, please re-level it.
2.It is possible that the configuration file is modified or damaged, please replace the original configuration file.
13.How to adjust the nozzle scraping model when printing?
1.Reduce the extrusion flow by ten percent
2.Replace the Gyroid Infill Pattern
3.Properly reduce the printing (idle) speed
14.How to adjust the model does not stick to the hot bed?
1.Adjust Z0. If Z0 is too high, the model will not stick to the hot bed, and if Z0 is too low, the model will warp. (If the first layer has excess extrusion need to reduce the starting layer flow)
2.Properly increase the first layer printing temperature and hot bed temperature
3.Add skirt to the model
4.Apply solid glue to the platform
15.How to adjust the V400 machine with uneven adjustment?
1.First of all, make sure that the machine is installed firmly and without skew.
2.Make sure the order of leveling is correct

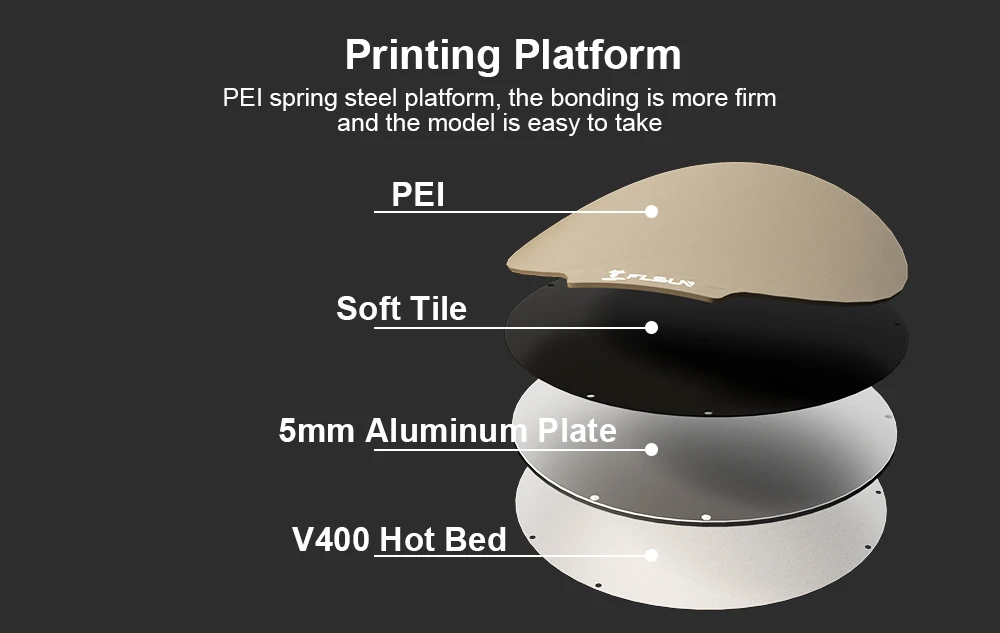

3.No impurities under the pei board
4.No obvious resistance when sliding the slider, and keep the same tension of the three belts.
16.What should I do if the klipper has stopped on the V400pad page?
Whether this happens before or during printing, please open the web side of the machine on the computer page after connecting to WiFi to view the detailed error message. And send the error message to our after-sales service to solve it for you.
window.adminAccountId=237208748;
Specification: FLSUN V400 3D Printer Delta FDM Speed upgrade 600mm/s Supporting software：flsun system 300mm*300mm*410mm Direct Drive Extruder
Ships From
CHINA, brazil
color
3D Printer V400
Size
EU, US
Slice Thickness
0.2mm
Power Supply
24V
Auto Leveling
YES
Language
8 languages
Maximum Printing Speed
600mm/s
Bed Temp
300℃
Slice Software
CURA/Repetier-Host/Simplify3D
File Format
STL/OBJ/AMF/3DS
Fliament
PLA, ABS, PETG
Precision
0.05-0.2mm
Nozzle Diameter
0.4mm
Maximum Print Size
300 x 300 x 410mm
Molding Technology
3DP
Voltage
110-220V
Interface Type
SD
CE Certification
Yes
Brand Name
TWO TREES
TWO TREES Model
Flsun V400
Origin
Mainland China
Certification
CE
Model Number
FLSUN V400 3D Printer
Type
For flsun super racer
Type1
3d printer
Type2
Printer 3d
Type3
For flsun sr
Type4
For flsun 3d printer
Dimensions
