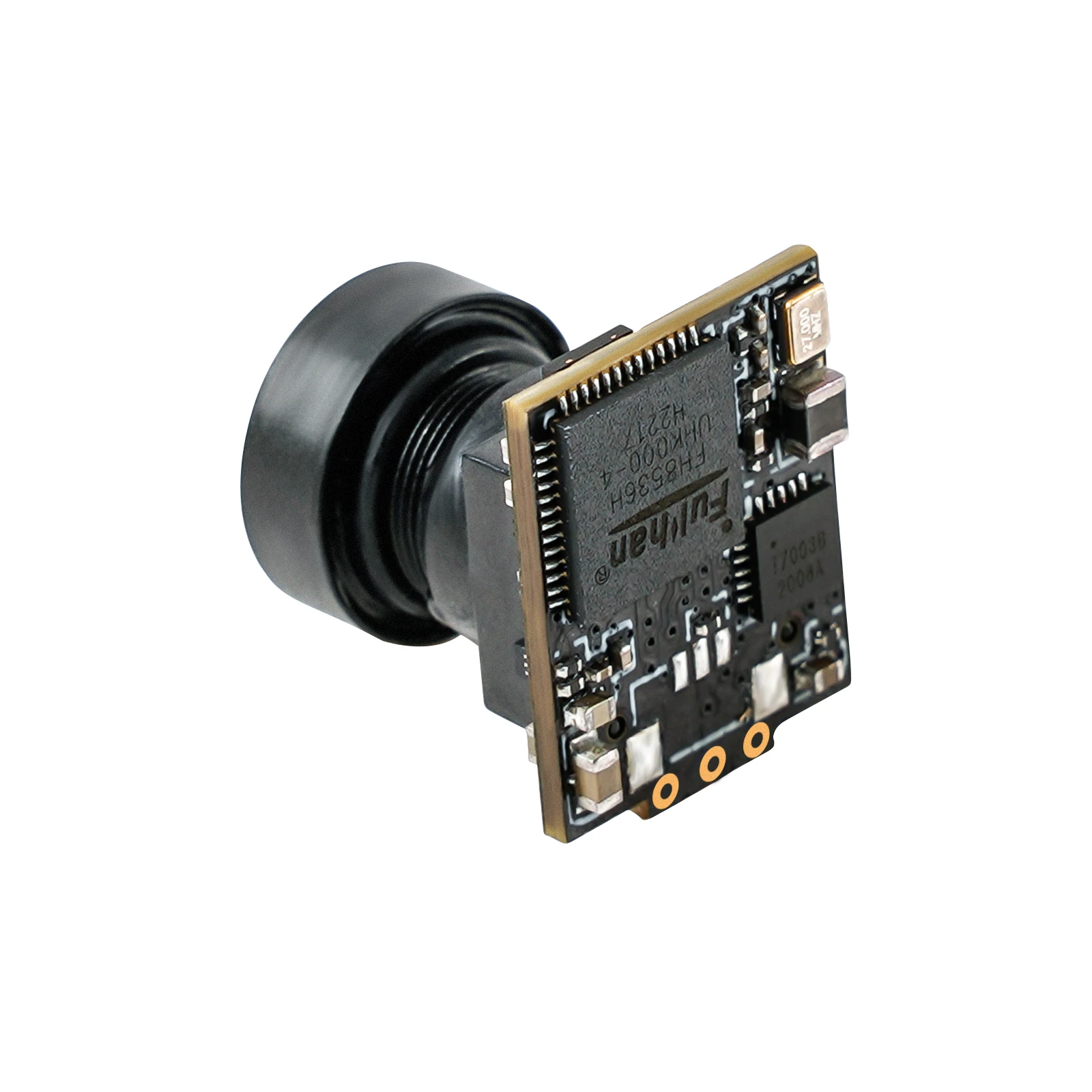

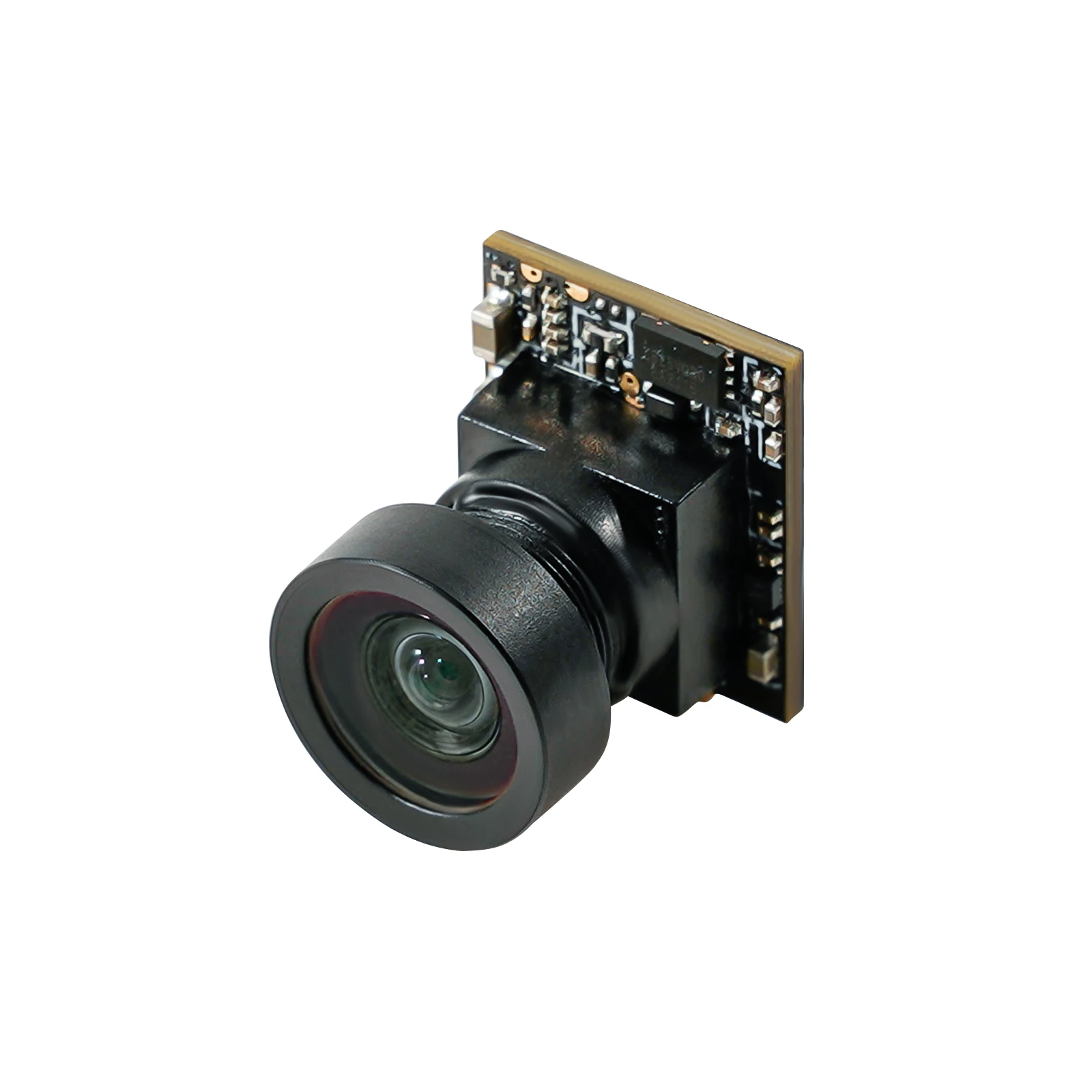

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BETAFPV Micro Canopy, which perfectly fits for C03 camera, making it more convenient for pilots to build quads.

• Item: C03 FPV Micro Camera

• Image Sensor: 1/3; CMOS Sensor

• Horizontal: 1200TVL with Global WDR

• Signal System: NTSC (4:3)

• Lens : 2.1mm(M7) FOV 160°

• S/N Ratio: >50db

• Electronic Shutter Speed: Auto

• Auto Gain Control (AGC): Auto

• Min. Illumination: [email protected]

• D-WDR: Auto

• Day/Night: Color

• Power: DC 3-5.5V

• Current: 100mA@5V / [email protected]

• Housing Material: ABS

• Dimension: 11*14.1*13.5mm

• Net weight: 1.45g

Specification

• Comes with BETAFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.

• Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.

• Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.

• 1200TVL resolution and 1/3; CMOS sensor ensure a high-quality and clear image

• Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition

• 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Bullet Points

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC,BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

• 1 * C03 FPV Micro Camera

• 1 * BETAFPV Micro Canopy

• 1 * 20° Lens Camera Mount for C02

• 1 * 20° Lens Camera Mount forC03

• 1 * 30° Lens Camera Mount forC03

• 3 * Decorative Parts

• 4 * M1.4*5 Screws (Sliver)

• 6 * M1.4*4 Screws (Black)

Package

• Canopy: BETAFPV Canopy for Micro Camera 2022

• VTX: BETAFPV M03 5.8G VTX

• FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers

• Drones: Meteor65/75 drones, or other micro whoop drones in the market.

Recommend Parts

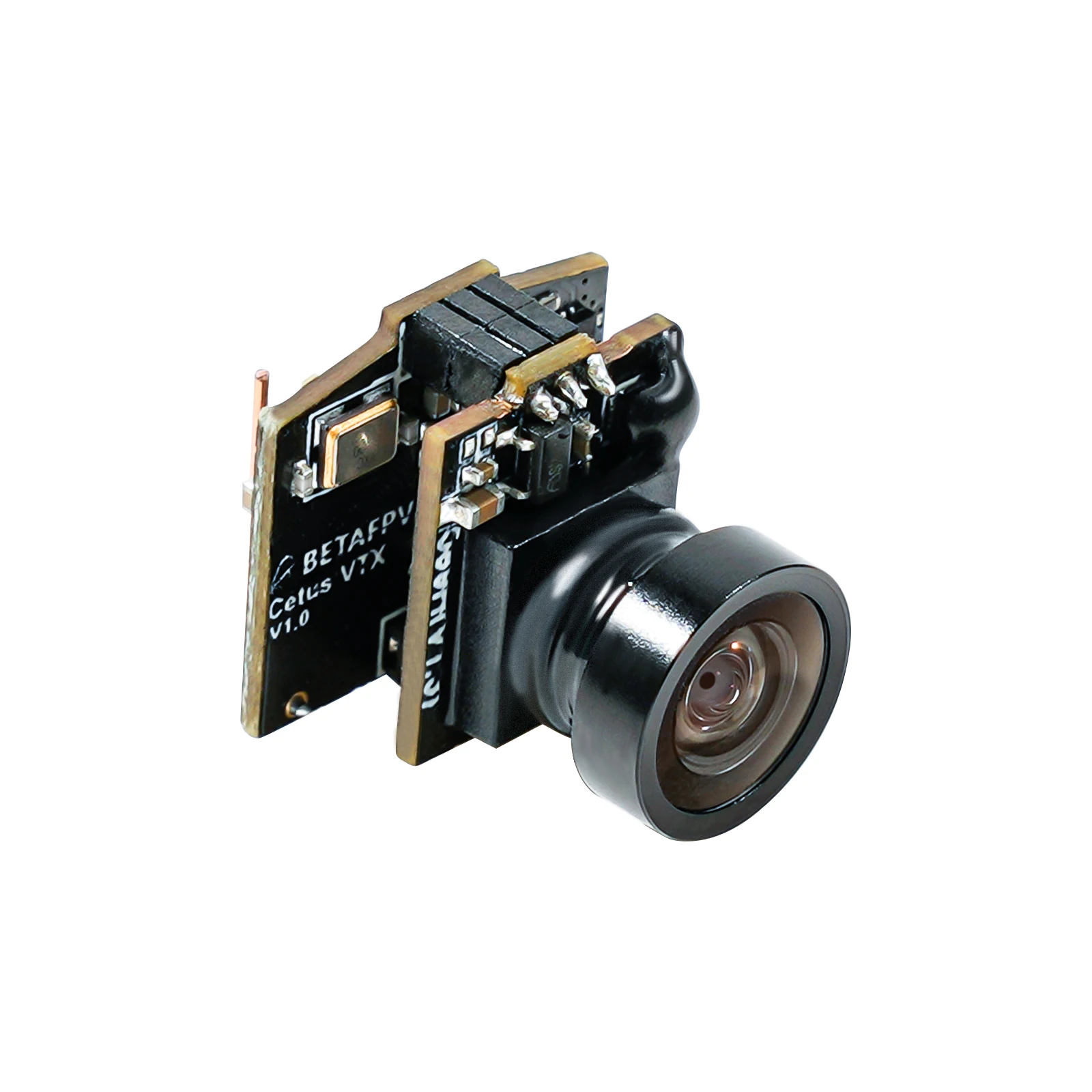

Cetus Lite Camera and VTX Module

The Cetus Lite Camera and VTX Module are used for upgrading Cetus Lite Kit to support the First-person view and also the replacement part for Cetus Lite FPV. Cetus Lite Camera and VTX are pre-build. With a plug-n-play connector, it is very easy for pilots to install without soldering.

Bullet Points

• Miniature, and lightweight design, weight at only 2.47g. The original camera and VTX for Cetus Lite.

• 800TVL resolution and 1/4; CMOS sensor ensure good quality and a clear image.

• Support global WDR with a 4:3 aspect ratio, it can shoot clear dynamic images even in low light conditions.

• With a 1.8mm Lens, and 150° FOV, it is capable of recording wide and beautiful scenes.

Specification

• Item: Cetus Lite Camera and VTX Module

• Image Sensor: 1/4; CMOS Sensor

• Horizontal: 800TVL with Global WDR

• VTX: 25mW

• Signal System: NTSC (4:3)

• Lens: 1.8mm FOV 150°

• Lens External Diameter: 10mm

• Power: DC 3.7V-5.5V

• Dimension: 15.5*14.5*16mm

• Weight: 2.47g (Camera&VTX)

Package

• 1 * Cetus Lite Camera and VTX Module

• 1 * Mounting Part

• 1 * Power Cable

• 4 * Screws

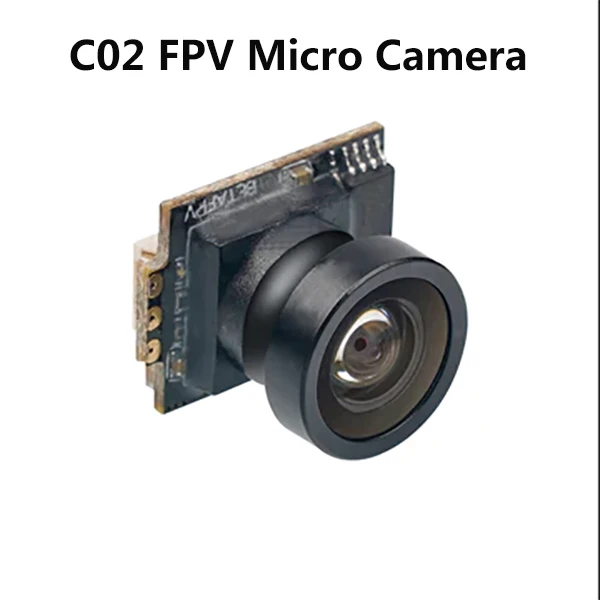

BETAFPV C02 FPV

C02 Micro Camera is the lightweight camera customized for those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4'' CMOS sensor, 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

Plug-N-Play Connector

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for Cetus seris drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Bullet Points

• Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.

• 1200TVL resolution and 1/4; CMOS sensor ensure a high-quality and clear image

• Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition

• 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

• The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

Specification

• Item: C02 Camera

• Image Sensor: 1/4; CMOS Sensor

• Horizontal: 1200TVL with Global WDR

• Signal System: NTSC

• Lens : 2.1mm(M8) FOV 160°

• S/N Ratio: >50db

• Electronic Shutter Speed: Auto

• Auto Gain Control (AGC): Auto

• Min. Illumination: [email protected]

• D-WDR: Auto

• Day/Night: Color

• Power: DC 3-5.5V

• Current: 110mA@5V / [email protected]

• Housing Material: ABS

• Dimension: 13*11mm

• Net weight: 1.4g

Package

• 1 * C02 FPV Micro Camera

• 1 * Injection Molded Canopy

• 1 * 1/4'' Camera Mounting hardware
