Description:
LS – 800D is an exceptional pair of FPV goggles at a low price. Compared with other FPV goggles, it has a bigger and clearer display – 5 inch 854 x 480; its built-in DVR supports up to 128GB micro SD card for recording 720 x 480 videos.
More importantly, two sets of chips are dedicated to displaying and recording respectively, so you are able to have an enjoyable aerial view with maximum fluency.
Main Features:
5 inch big screen, 854 x 480 HD display, 82-degree FOV for FPV racing
Built-in DVR supports recording 720 x 480 videos and up to 128GB micro SD card
Separated chips for displaying / recording, which ensures no latency and no frame lost
Maximum signal coverage with dual receivers and antennas + channel auto searching
3.7V 2000mAh LiPo battery provides up to 2h operation time after each full charge
Specifications:
Display
Screen size: 5.0 inches
Resolution: 854 x 480 ( no blur after enlarge by the lens )
Brightness: 450cd / square meter
Screen type: LED-backlit LCD for outdoors
Aspect ratio: 16:9
FOV: 82 degree
Lens: 3x boost of the image
DVR
Video recording: 720 x 480 ( AVI )
Supported micro SD card: up to 128GB ( Class 10 required )
Connectivity

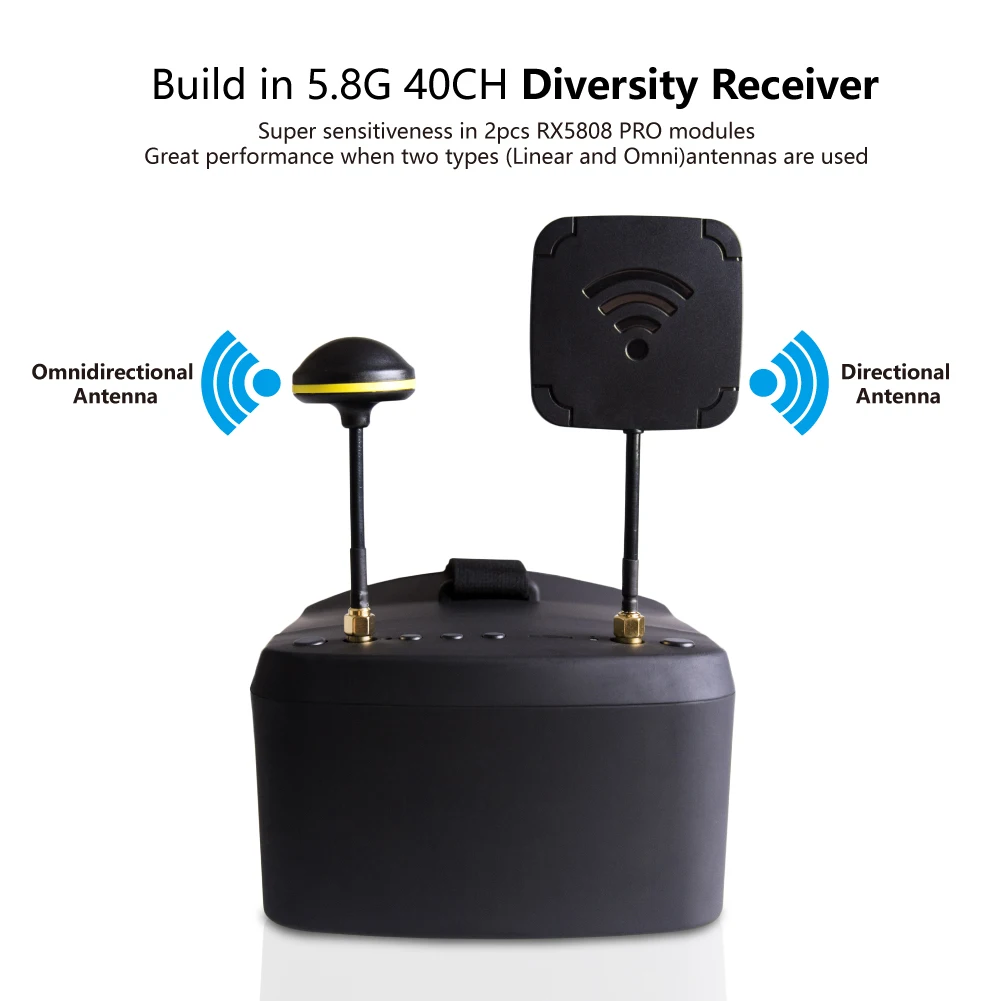

Diversity receiver: 2 x RX5808
Sensitivity: -90dBm
Frequency: 5.8GHz
Number of channels: 40
Auto searching: yes
Antenna: 14dBi flat, 14dBi mushroom
Interface: micro USB Type-B, 3.5mm video input
Power Supply

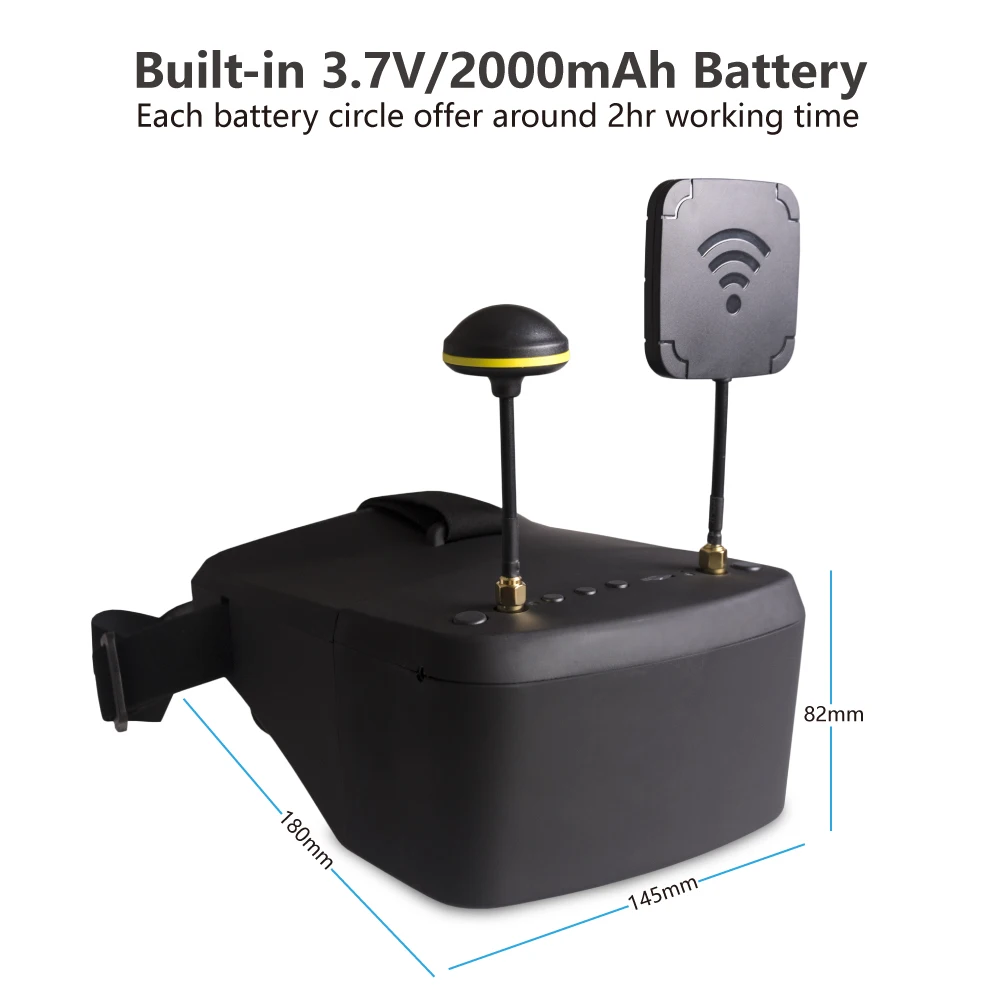

Built-in battery: 3.7V 2000mAh LiPo
Operation time: 2 hours
Charger: 5V 2A
Charge time: 4.5 hours
Specification:
Model |
|||||||||
Name |
5.8G FPV Goggles |
||||||||
LCD Screen |
Screen size: 5Inch |
||||||||
Resolution: 800*480 |
|||||||||
Display Ratio: 16:9 |
|||||||||
View Angle: 6 o'clock |
|||||||||
Brightness: 300cd/m² with high brightness backlight LED |
|||||||||
Video delay |
Video time-delay less than 20ms |
||||||||
Lens |
2.8X Fresnel Lens, 92% transparent rate no distort of light |
||||||||
Interface |
Antenna |
2 X RP-SMA male |
|||||||
USB |
To charge the battery |
||||||||
AV Jack |
External video signals input or internal Audio signal output |
||||||||
Card slot |
TF-Card, Support up to 64G(C10 recommend) |
||||||||
DVR |
REC size: VGA / D1 / HD Selectable |
||||||||
REC sound:ON / OFF Selectable |
|||||||||
REC time: OFF / 3min / 5min / 10min Selectable |
|||||||||
Frame rate: 30 Frames |
|||||||||
Compress format: MJPEG |
|||||||||
Record file format:AVI |
|||||||||
Languages |
English and Chinese |
||||||||
Power Supply |
Power adapter: DC5V/2A (USB interface) |
||||||||
Battery: 3.7V/2000mAh, DVR module ON:Each full charge revive around 2.5hr working time DVR module OFF:Each full charge revive around 3.5hr working time |
|||||||||
Power Consumption: *Normal mode: The device operating current of 400mA at 3.7V; *Record Mode : The device operating current of 620mA at 3.7V; * Built-in battery maximum charge current of 500mA; |
|||||||||
Wireless |
Frequency Table(MHz) |
||||||||
CH1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
||
Band A |
5865 |
5845 |
5825 |
5805 |
5785 |
5765 |
5745 |
5725 |
|
Band B |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
|
Band E |
5705 |
5685 |
5665 |
5645 |
5885 |
5905 |
5925 |
5945 |
|
Band F |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880 |
|
Band R |
5658 |
5695 |
5732 |
5769 |
5806 |
5843 |
5880 |
5917 |
|
Body |
Dimension: 180mm * 140mm * 84mm |
||||||||
Weight: 393g(with headband, not included antennas) |
* Note: Cannot record video input from AV port. *
Description:

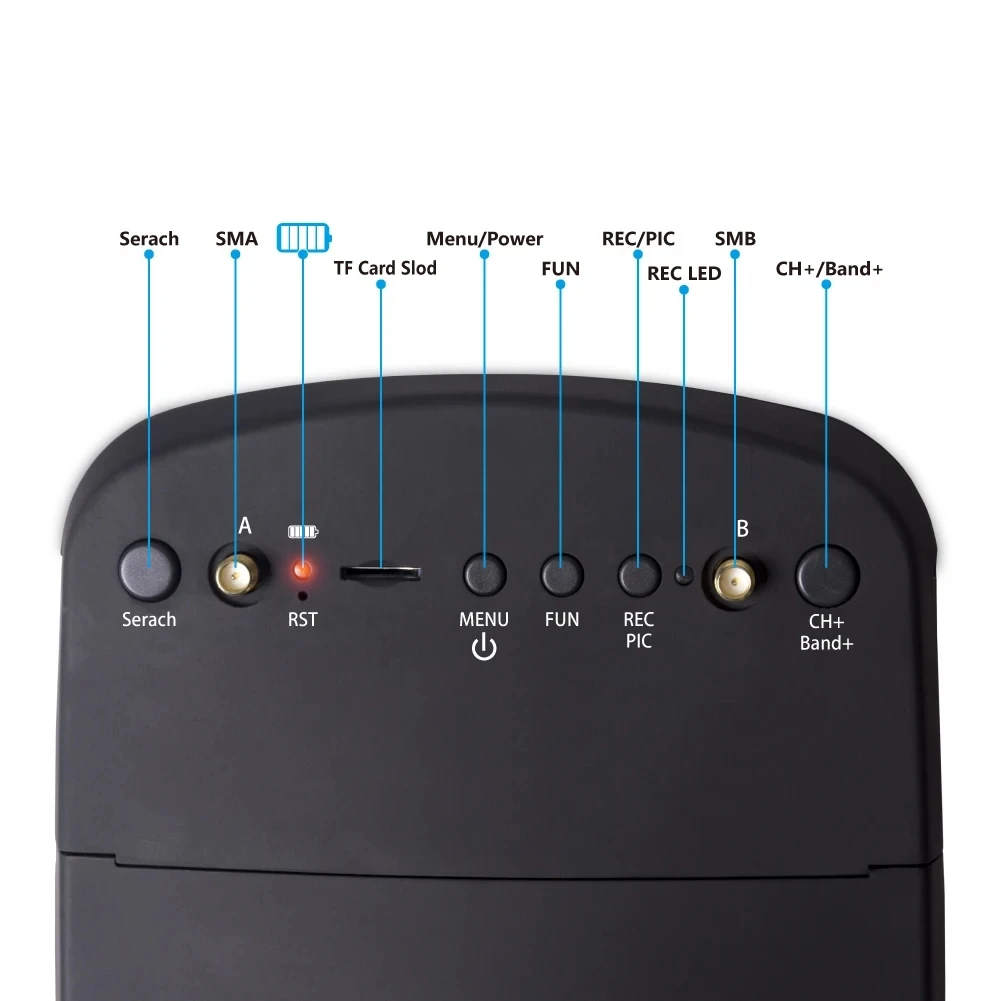

① Key 1: Short press into MENU mode; Long press (More than 2 sec) for Power ON/OFF.
② Key 2: Short press for Auto-Searching; Long press (More than 1.5 sec) into AV mode.
③ Key 3: Short press to start or stop Recording.
④ Key 4: Short press for Band+ (Change bands A-B-E-F-R circularly).
⑤ Key 5: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
⑥ Antenna port A: RP-SMA male.
⑦ Antenna port B: RP-SMA male.
⑧ AV Jack: In RFreceiving mode can output Audio signal; In AV mode can enter the video signal.
⑨ Micro-USB Charging port: Supports DC5V only.
⑩ Card slot: Used for inserting memory card.
⑪ RESET: Power Reset.
⑫ Charging indicator: When is charging, the red light is on; When is full, the green light is on.
⑬ REC indicator: Show the different working states of the DVR module.
Menu Instructions:
In the normal mode, press Key 1 to enter the MENU mode.
In MENU mode:
Key 1: Scroll options bar.
Key 2: Auto-Searching.
Key 3:Invalid.
Key 4: Enter / Value +.
Key 5: Enter / Value -.
Playback Instructions:
In the menu mode, select the "DVR" option bar to enter the DVR mode.
In DVR mode:
Key 1: Return / Quit Playback mode.
Key 2: Delete current file.
Key 3:Play / Pause.
Key 4: Forward selection of video / Fast Forward (When video is playing).
Key 5: Backward selection of video / Fast Rewind (When video is playing).
AV port Instructions:
Dimension Diagram:
Not included antennas and headband.
Safety instruction:
1. Read the entire instruction manual to become familiar with the features of the product before operating.
2. Age Recommendation: Over 14 years old.Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
3. Please avoid wet or humid environments.
4. Please use standard USB charger, charging voltage can only be 5V.
5. Audio output and Video input cannot work at the same time.
