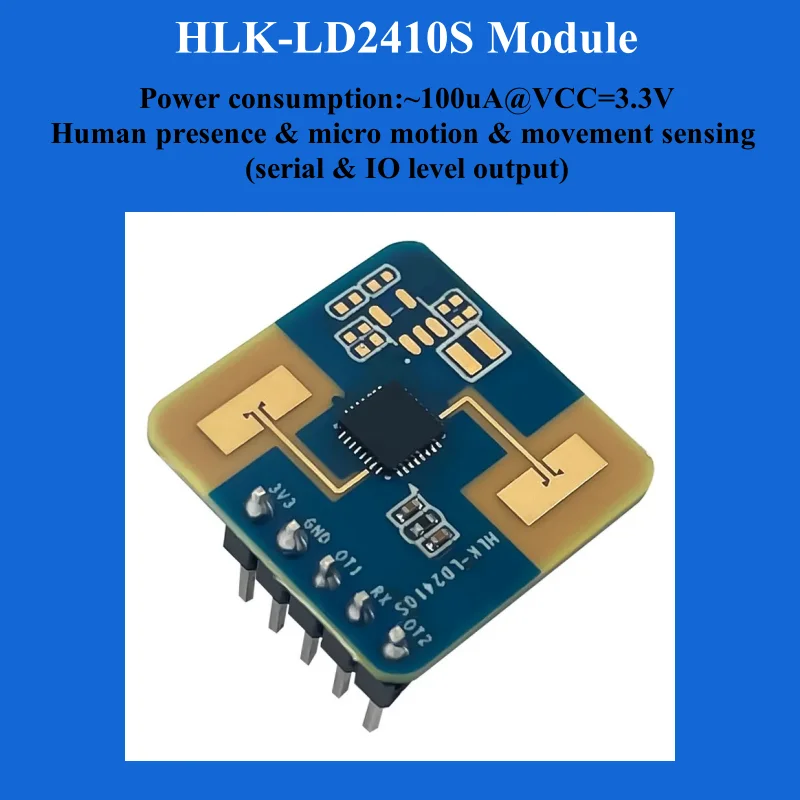

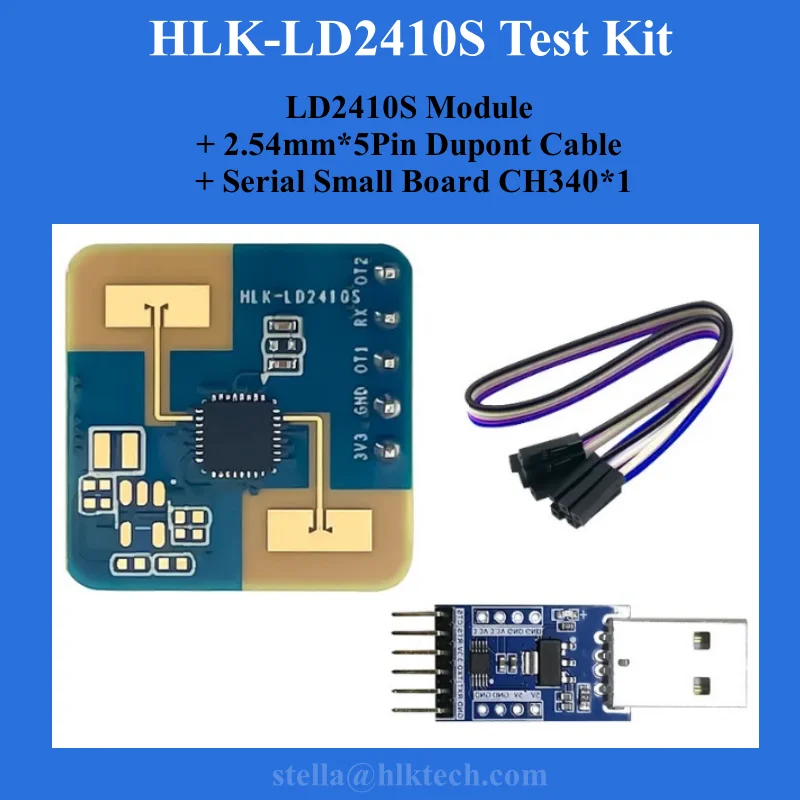

24GHz HLK-LD2410S Radar Sensor 0.1mA 3.3V Low power consumption Millimeter Wave Human Presence Detection Motion Switch LD2410S

Welcome to HI-LINK store!

1. Introduction

• HLK-LD2410S is a battery-powered, ultra-low-power human presence millimetre wave sensor of the HLK- LD2410S series, containing the extremely simplified 24GHz millimetre wave sensor hardware LD2410S and the low-power human presence sensing smart algorithm firmware.

• The hardware LD2410S is equipped with an AIoT millimetre wave sensor, a high-performance 24GHz one-transmitter-one-receiver antenna and peripheral circuits; the low-power intelligent human presence sensing algorithm adopts the millimetre-wave sensor distance measurement technology and the ICL1112 chip's advanced proprietary radar signal processing and low-power control technology to achieve the accurate sensing of motion, micro-motion and standing human bodies. The low-power human presence sensing algorithm firmware is mainly applied in indoor scenes, sensing whether there is a moving or micro-moving human body in the area in low-power mode, and refreshing the detection results in real time.

2.  Main Features

• Equipped with single-chip smart millimetre wave sensor SoC and smart algorithm firmware

• Ultra-small sensor size: 20 mm *20 mm

• Load default sensing configuration, plug and play

• 24 GHz ISM band, FCC, CE, No Commission Spectrum Regulations certified

• 3.3 V power supply, support 3.0 V ~ 3.6 V wide voltage range

• Average operating current 0.1 mA @ 1 Hz reported frequency

• Detection of moving, slightly moving and stationary bodies

• Real-time reporting of detection results

• Provides visualization tools to support configuration of detection range intervals and target disappearance delay times

• Supports sensing range division, completely shielded from any interference outside the zone

• Proximity sensing 0.2 m, no detection blind spot

• Motion body sensing up to 8 m

• Large detection angle, horizontal coverage angle ±60° for wall mounting

• Supports wall mounting

• Support IAP online upgrade

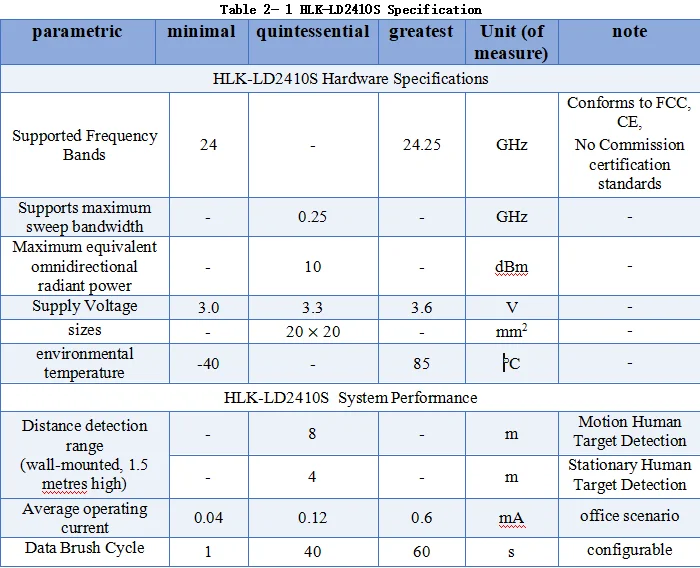

3.System Description

4.Hardware Description

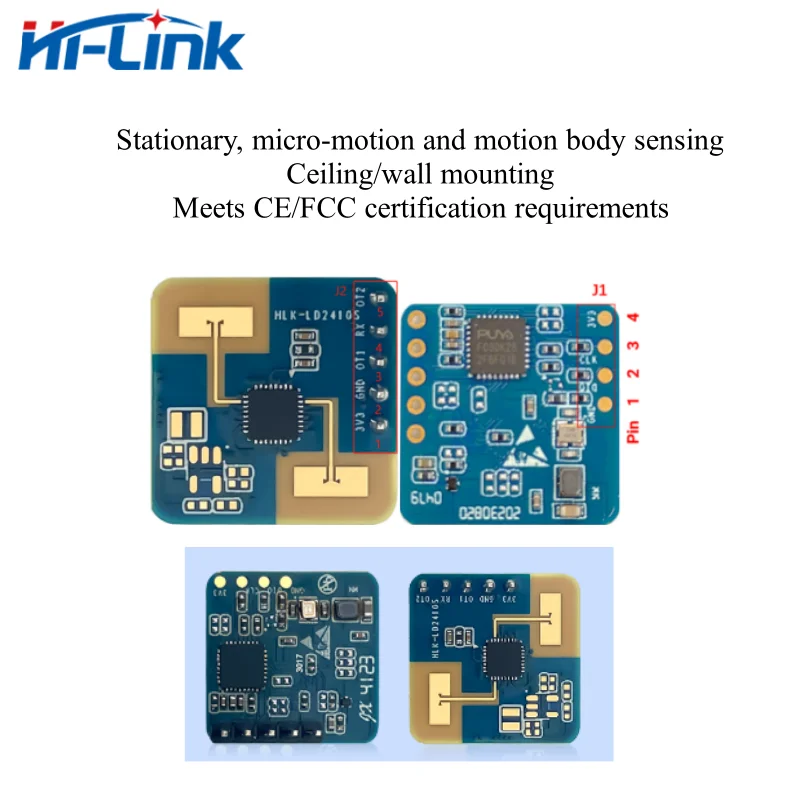

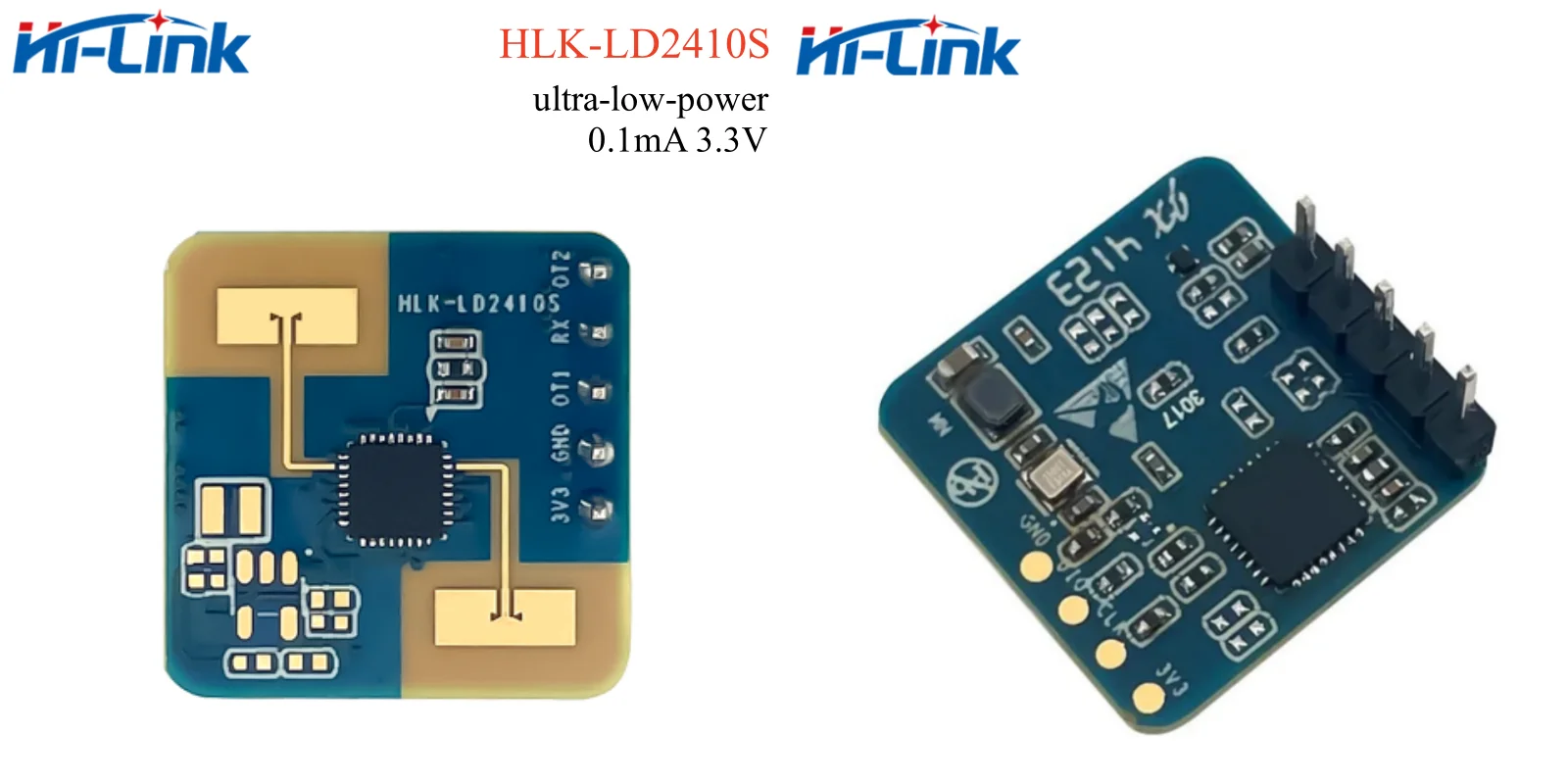

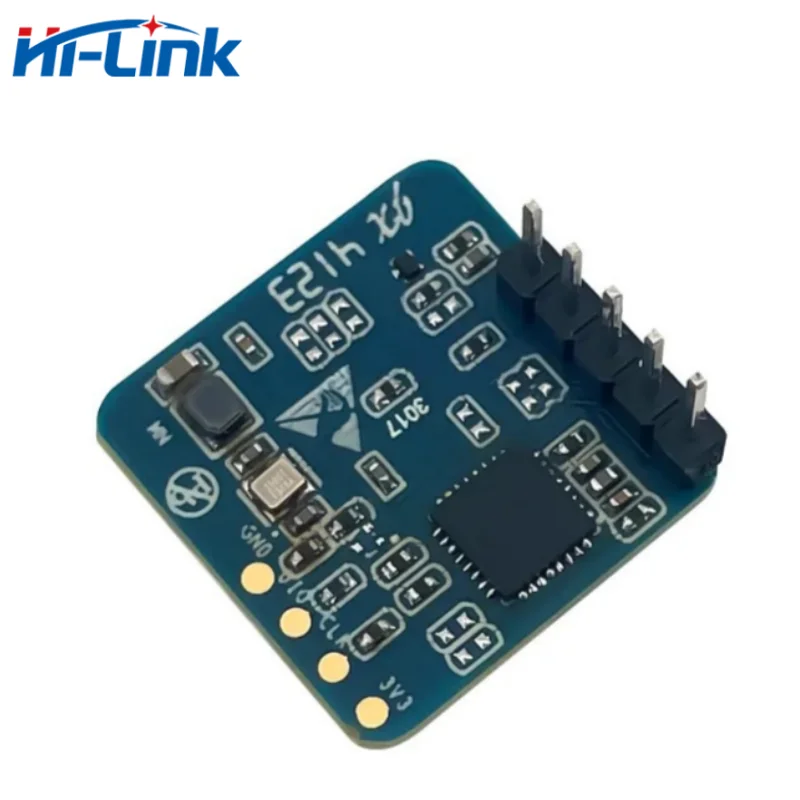

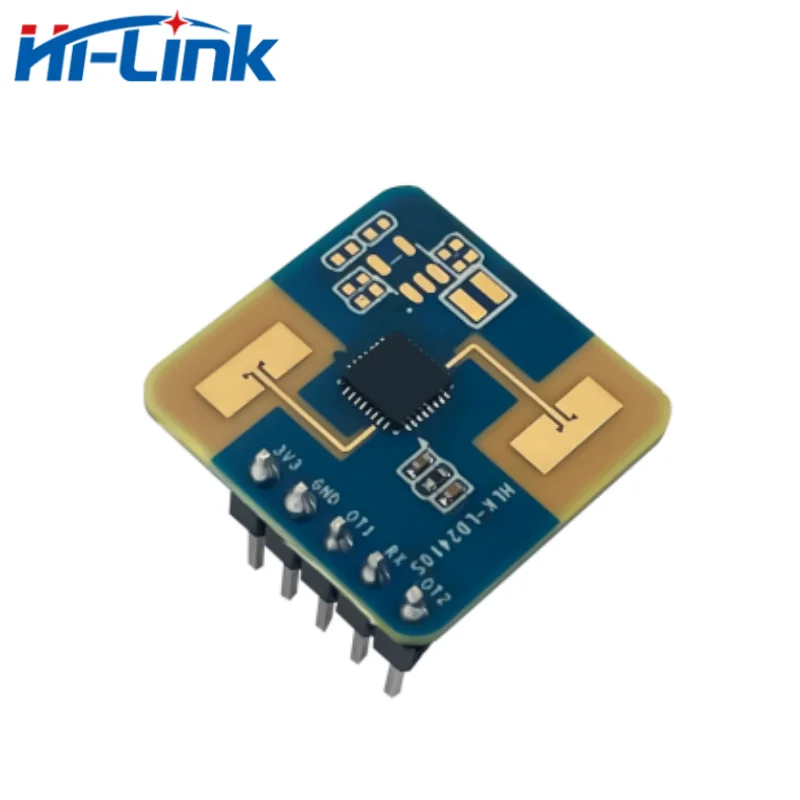

Figure 3-1 shows the front and back photos of the hardware LD2410S. The hardware LD2410S is reserved with 5 pin holes (factory fitted pins) called J2 for power supply and communication; J1 is the SWD interface for burning and debugging MCU programs.

Table 3- Table 3- 1 J1 Pin Description

Table 3- Table 3- 2 J2 Pin Description

5. Installation and detection range

The recommended mounting method for the HLK-LD2410S is wall mounting. For wall mounting, the orientation of the millimetre wave sensor is shown in Figure 6-1. Where the X-axis direction is 0°, the Z-axis direction is 90°, and the Y-axis is perpendicular to the X-Z plane (also called the normal direction).

Figure 6-1 Sensor Orientation Schematic

The recommended wall mounting height is 1.5~2 m. In this case, the maximum motion sensing range of HLK-LD2410S in the default configuration is a conical space with a normal direction of 8 m and a horizontal and pitch angle of ±60°, as shown in Figure 6-2.

Figure 6-2 HLK-LD2410S Schematic diagram of detection range (wall-mounted)

At a wall mounting height of 1.5 m, the detection range of HLK-LD2410S for stationary, slightly moving and moving human body in all directions is shown in Figure 6-3.

Figure 6-3 Wall Mount Sensing Range

6. Mechanical dimensions

7. Applications:

• Smart home

Sensing the presence and distance of moving objects such as the human body and reporting the detection results for the main control module to intelligently control the operation of home appliances.

• Smart Business

Recognize the human body approaching or moving away within the set distance interval; illuminate the screen in time and keep the device on for a long time in the presence of the human body.

• Intelligent Security

Intelligent door locks, sensor access control, building intercom, electronic cat-eye and so on.

• Intelligent lighting

Recognition and sensing of the human body, precise position detection, can be used for lighting equipment in public places (induction lamps, bulb lamps, etc.).
