1 Set 433Mhz RF Superheterodyne Receiver Transmitter Module Kit With Antenna

Description:
1. Receiver Module:
Features:
WL101-341 superheterodyne wireless receiver module is receiving UHF ASK demodulators supporting ASK and OOK modulation.
The receiver module has high sensitivity (-110dBm),
Low-power performance, along with high dynamic range (greater than 60dB).
Module uses highly integrated chip, built front-end low-noise amplifier, mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
Low power consumption
Good selectivity and spurious radiation suppression.
Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance.
Multiple transmission rates, the general module for 2KHz, up to 10KHz.

Application environment:
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Specifications:
Model: WL101-341
Material: Plastic + Metal
Color: shown as pictures

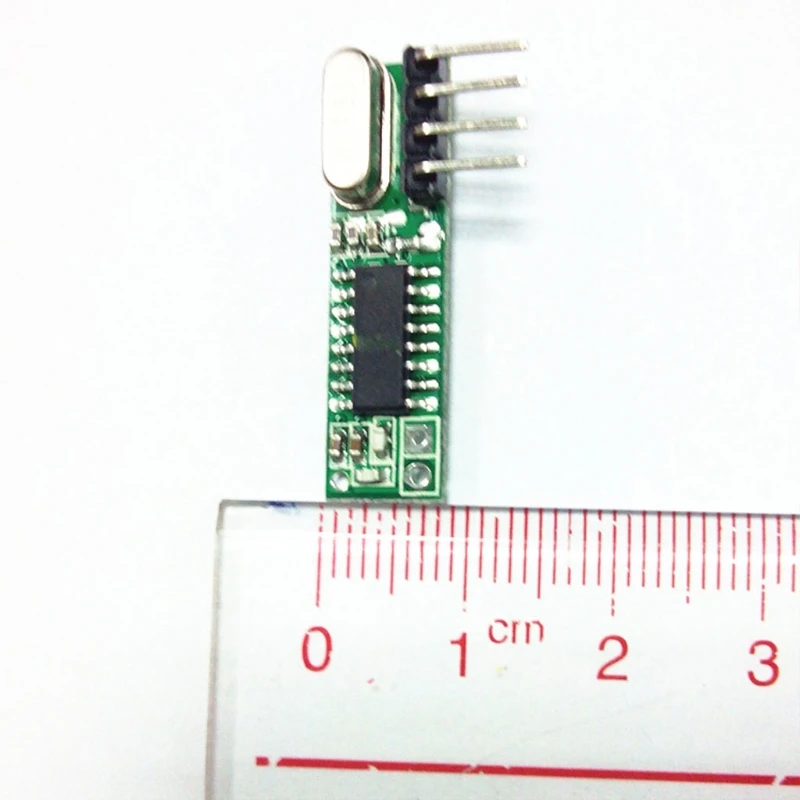

Size: 30.25×8.5×1mm
Operating frequency: 433.92 MHz
Bandwidth: about ± 150KHz;
Mains input voltage range: 3.0V-5V;
Working current: Type: 5.0mA (Requirement:VDD=5V) ; Type: 6.0mA (Requirement:VDD=3V)
Quiescent Current: 1uA
Temperature range: -40°～85°
External antenna: 32cm single core wire, wound into a spiral

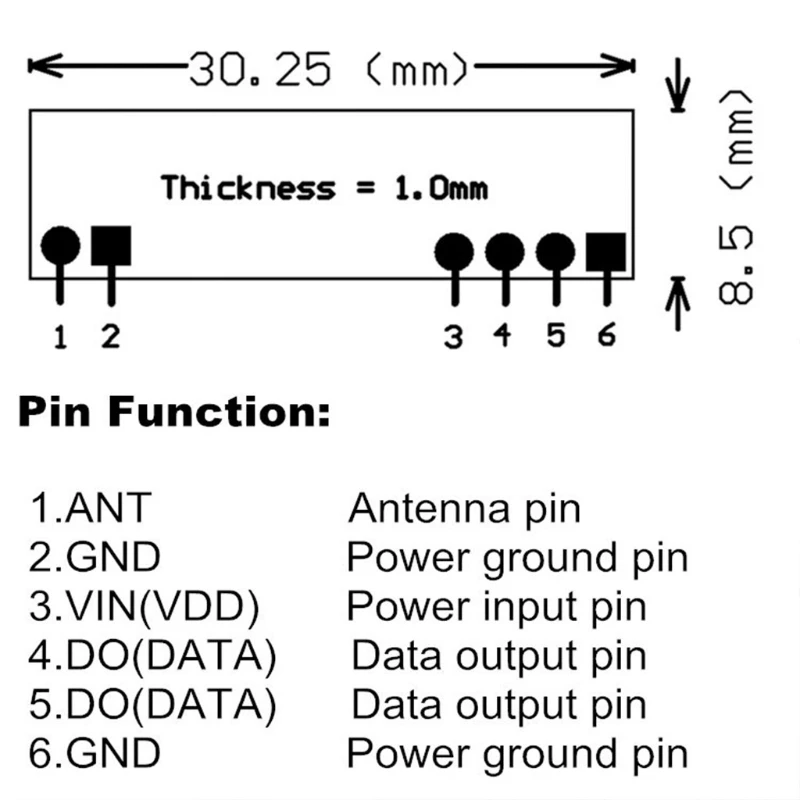

Receiver Module PIN definition:
pin function:
1. ANT: Antenna pin
2. GND: Power ground pin
3. VIN(VDD): Power input pin
4. DO(DATA): Data output pin
5. DO(DATA): Data output pin
6. GND: Power ground pin

2. Transmitter Module:
Features:
WL102-341 transmitter module is UHF ASK modulated transmitters, support ASK and OOK modulation.
The transmitter module integrates an analog PLL circuit and ASK modulation circuit, with a high level of integration, etc., can be applied with a short-range wireless communications.
Operating frequency 433MHz, transmit power is greater than 11dBm.

Applications
1.wireless power switch, socket, remote control switch, receiver module,
2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system
3. security, surveillance systems, home security products, electric doors, alarm host, alarm
4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door
5. smart home products, remote control curtains, remote MP3, audio

Specifications:
Model: WL102-341
Material: Plastic + Metal
Color: shown as pictures

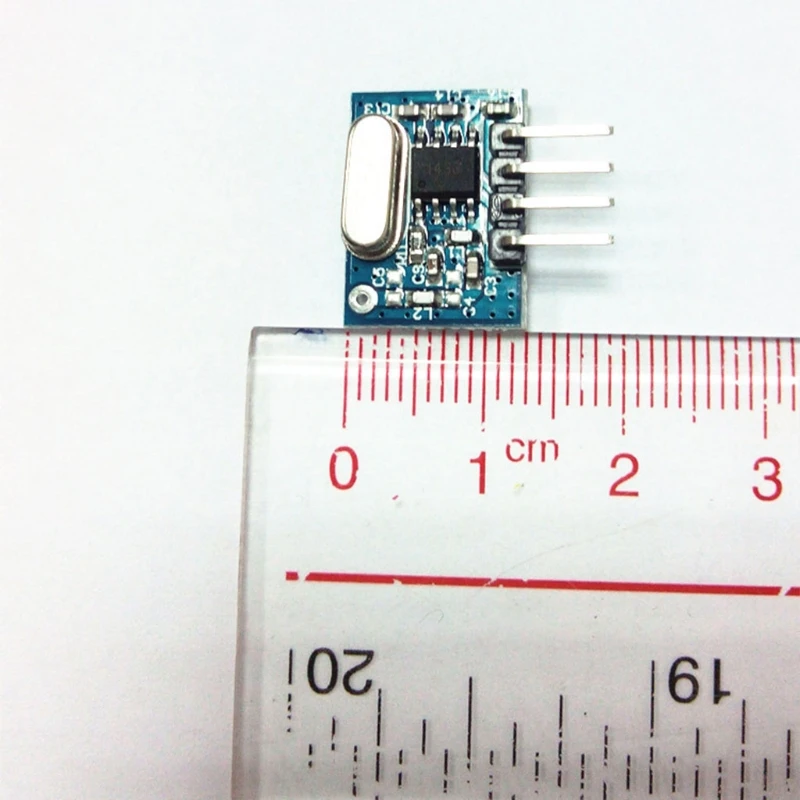

Size: 16×12×1mm
Operating frequency: 433.92 MHz
Mains input voltage range: 2.0V-3.6V
Shutdown mode current is less than 1uA
Transfer rate: up to 20KHz
Launch distance: 20-100 meters
External antenna: 25cm ordinary multi-core or single-core line
Temperature range: -45°～85°
Transmitter Module PIN definition:
DAT – Wave signal input.
OUT – Antenna pin. RF signal output, can directly connect to the antenna.
EN – Enable Pin. But this product EN pin is connected to the power supply, no function.
– – Power- ground Pin. The ground wire connects power supply.
+ – Power supply pin. Power Input.
Quantity: 1 Set (other accessories demo in the picture is not included)

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

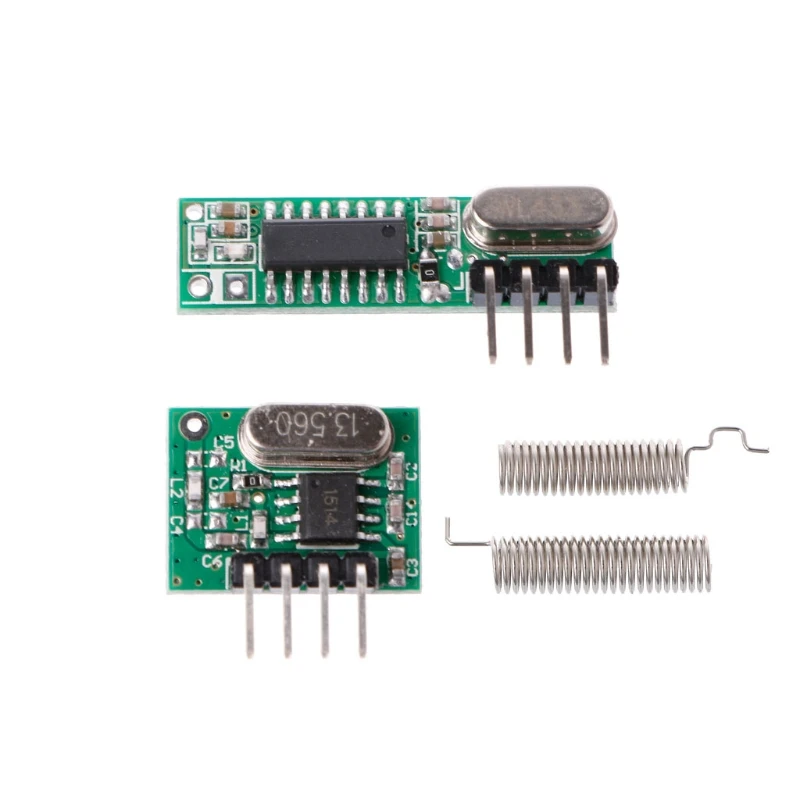

Package includes:
1 X Receiver Module(WL101-341) (No retail package)
1 X Transmitter Module(WL102-341)
2 X Antenna (Short antenna for Transmitter; long antenna for Receiver.)
