KEYA 2026 Electric Steering Motor with Wheel for Tractor Auto Steering System

Factory Wholesales Cheap Price Keya Autopilot Motor Kit 2026 Motor for Tractor AgOpenGPS navigation system

Motor Model: KY173DD01005-08-HC (V5.0)

Product Description

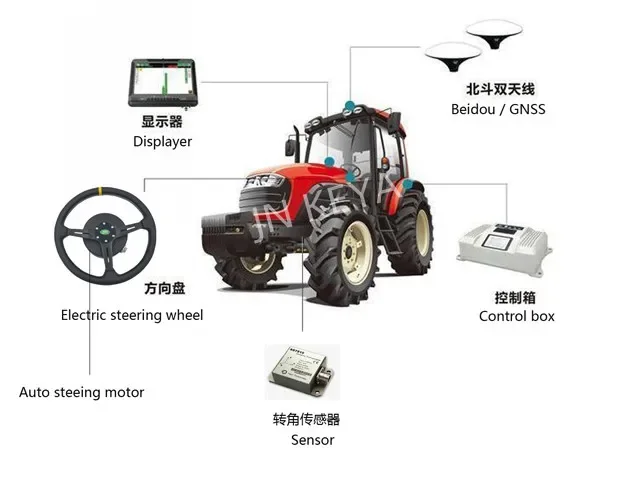

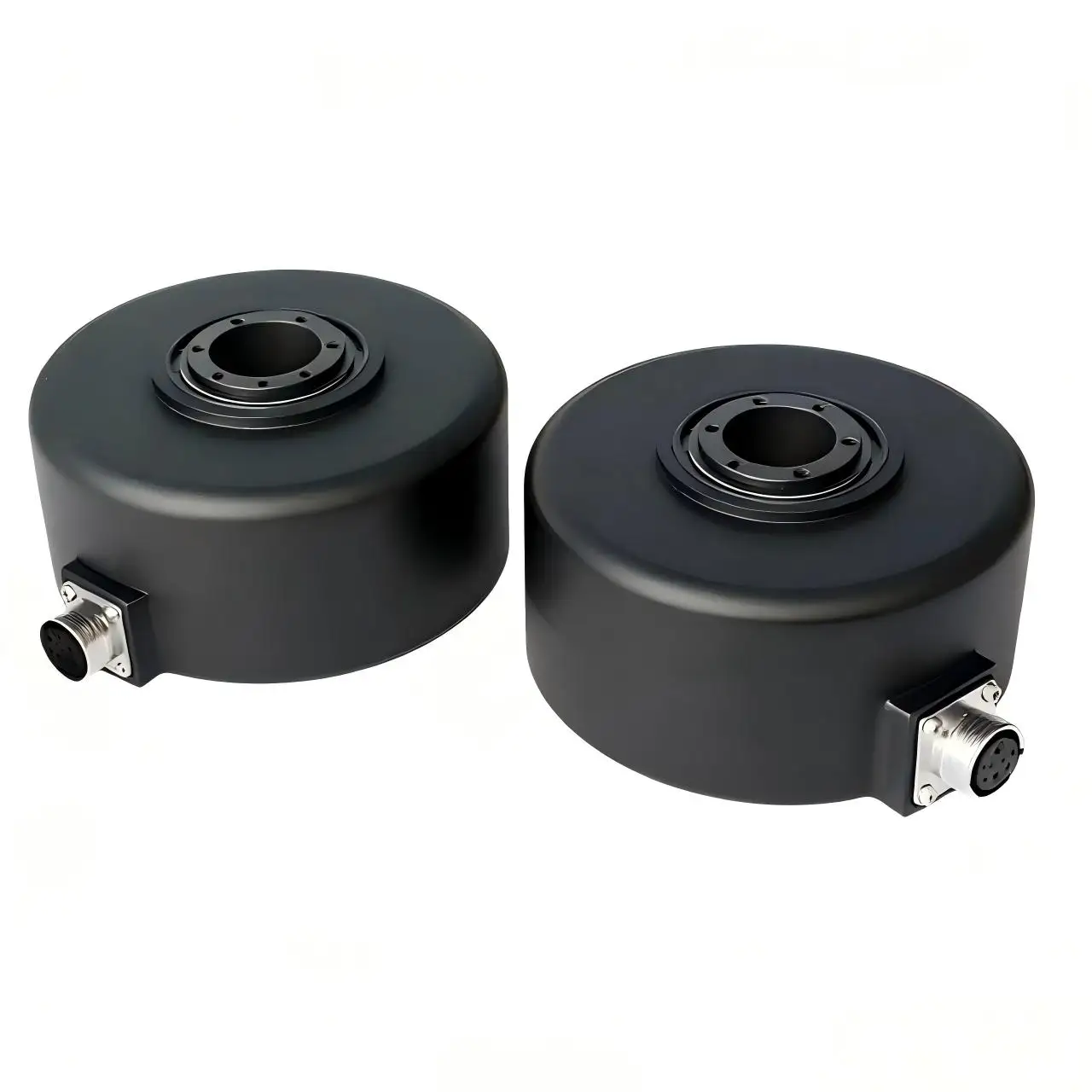

This eletric motor adopts direct drive motor scheme design, the rated speed is 100rpm, you can install it to the steering wheel shaft directly. It has built-in controller, support RS232, CAN control, the rated voltage is 12V or 24V, rated torque is 7N.m, the peak torque can reach 13N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for precision agriculture, precision farming and digital farming.

Product Features:

1.The latest V4 motor version KY173DD01005-08-HC has smaller height with 65mm. More comfortable for driving.

2. RS232 control signal is removed from standard model. If RS232 control is also necessary, please leave a message or a note in your order.

3. The motor has a wall mount connector instead of cable mount connector (DEUTSCH connector) like older version V4.0

What's in the package?

The option "Motor and Cable” including below products:

1pcs Keya Autopilot Motor Kit:KY173DD01005-08-HC

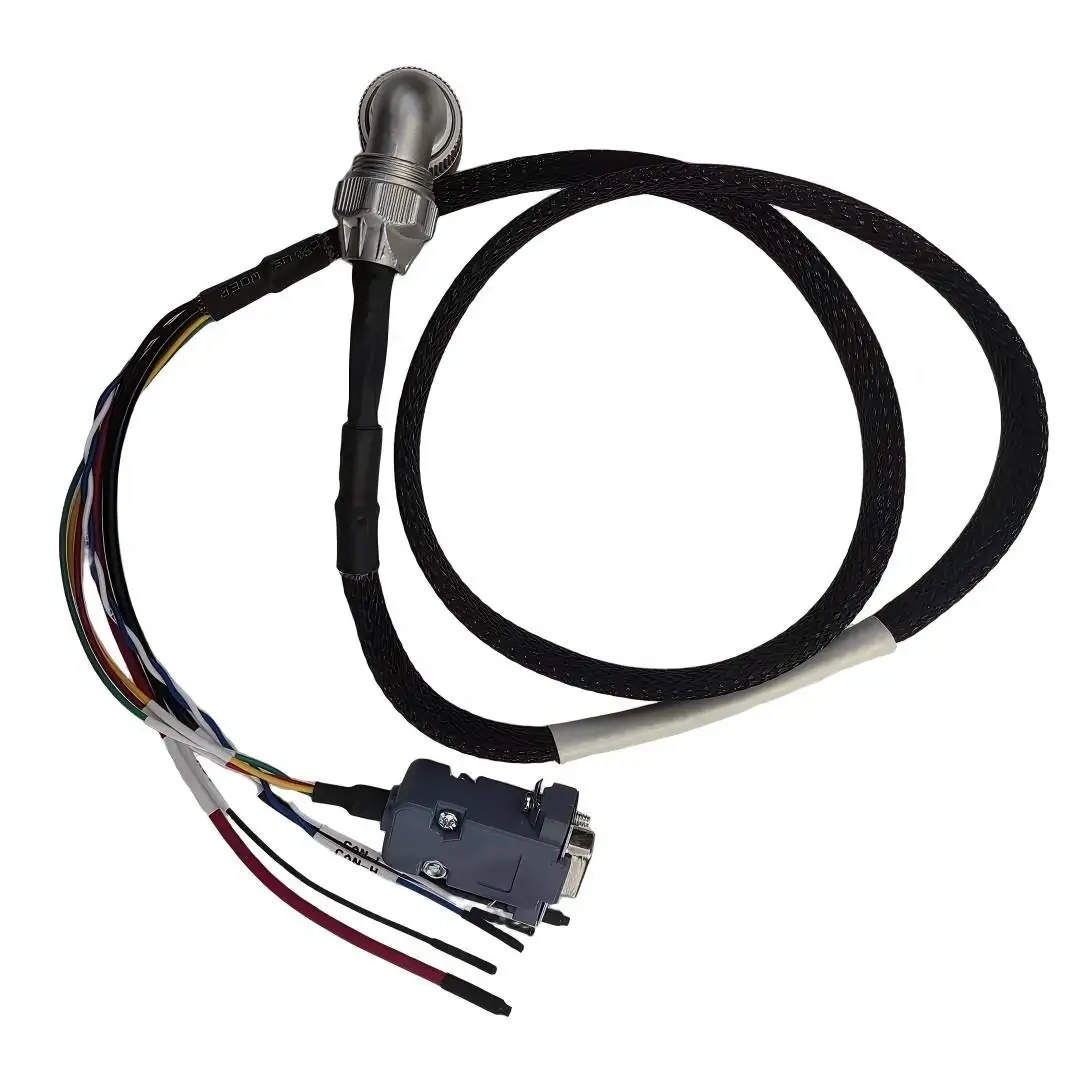

1pcs connect harness

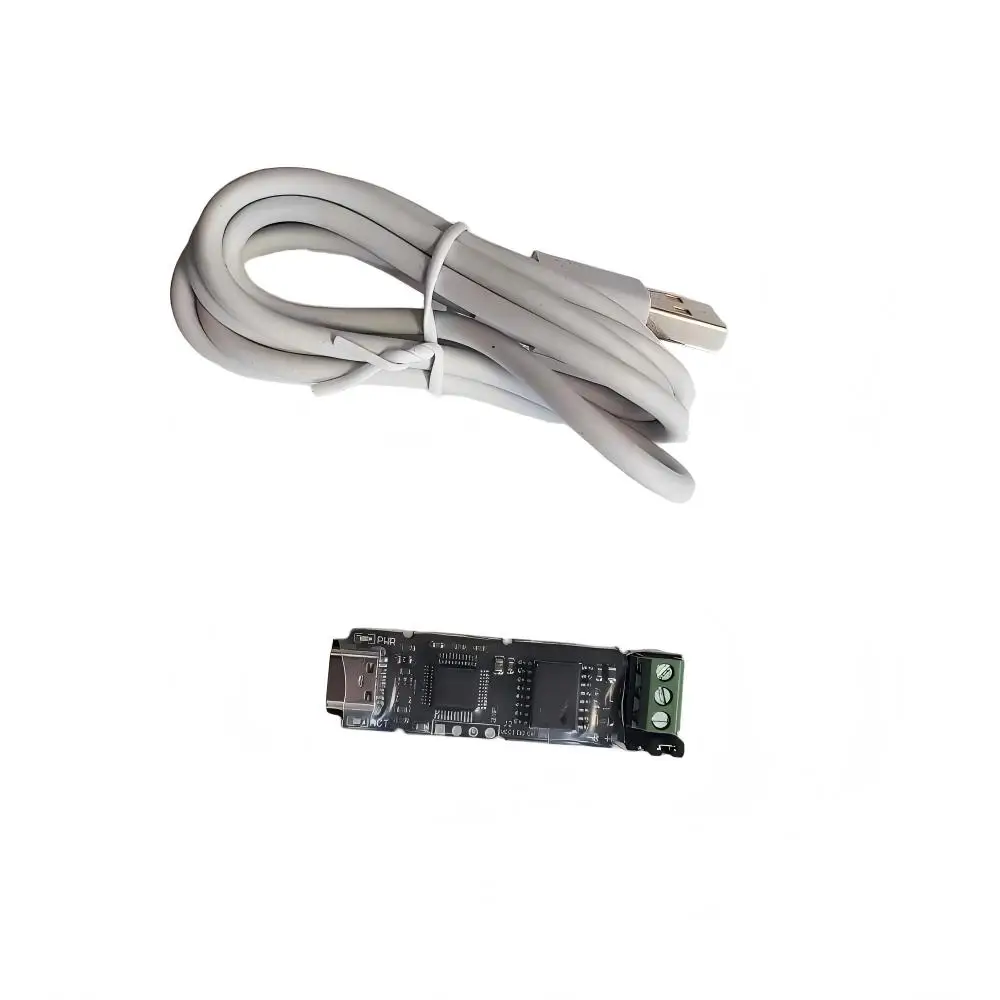

1pcs RS232 to USB cable (or CAN to USB board), for debuging the motor

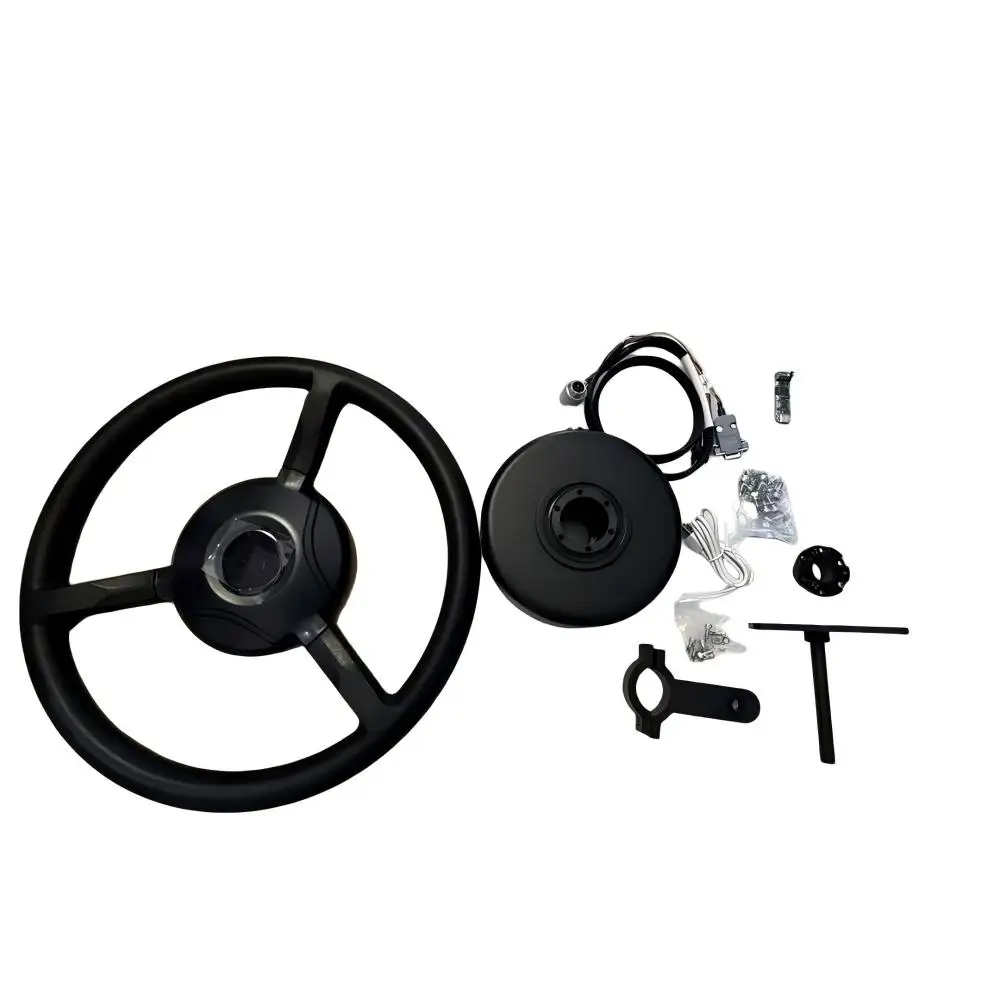

The option "Autopilot motor kit” including below products:

1 x autosteer motor

1 x harness (length 1m) with connector

1 x steering wheel, diameter 41cm, if you need other diameter, please advise in advance

1 x mounting brackets, it can matched most of tractor model.

1 x USB-RS232 (or CAN)cable to connect with keya configuration software.

notice: if you don't need modify the motor configuration, you will don't need the debug cable.

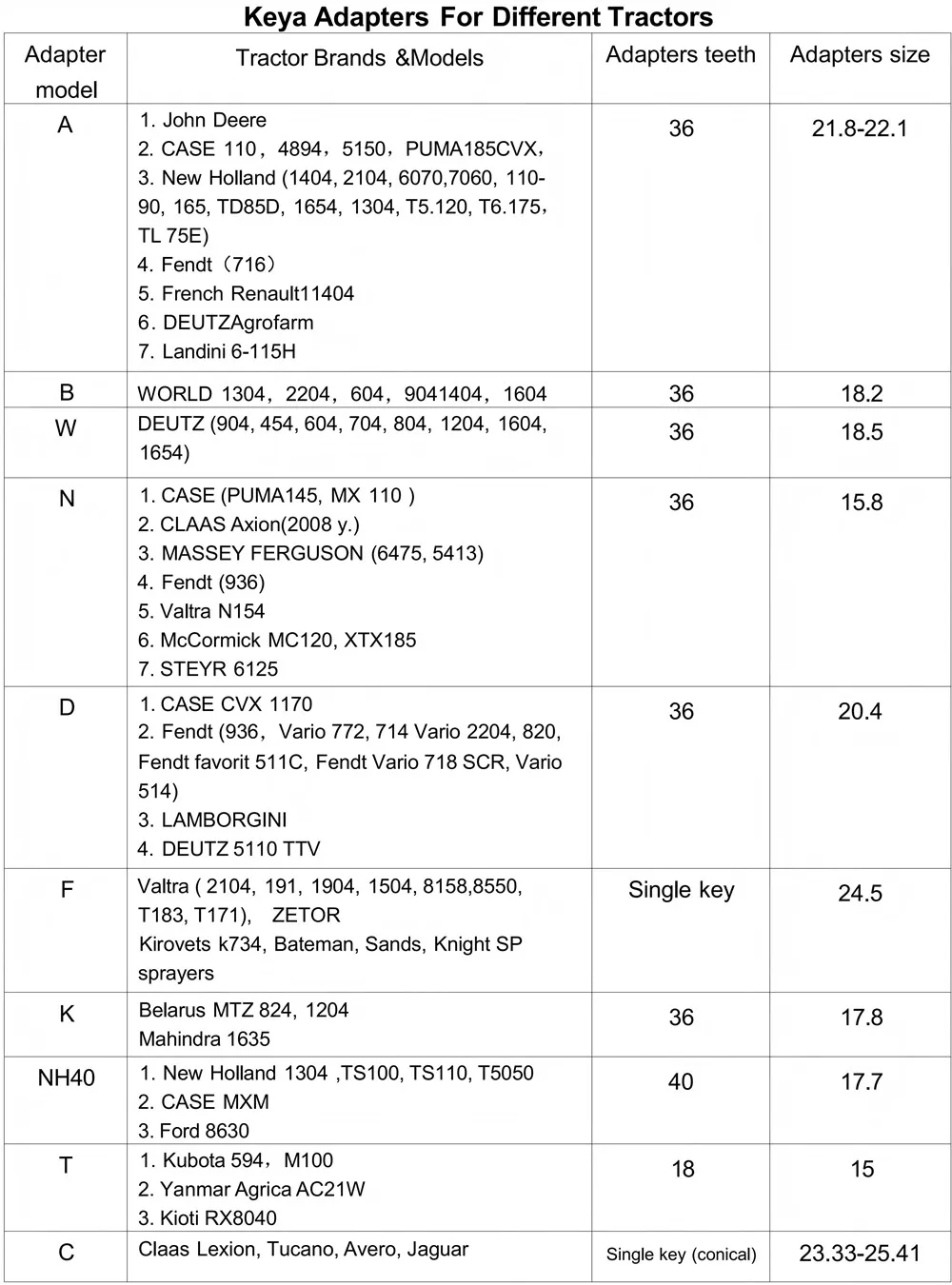

1 x adapter, it connect the autopilot motor to the tractor steering shaft.(See below table to choose right adapter for your tractor. If your tractor model is not mentioned in the table, please write to Eric, motor(at)jnzbi.com for confirmation.) Note: If you need more splines for transferring the motor among tractors, please leave messages with us.

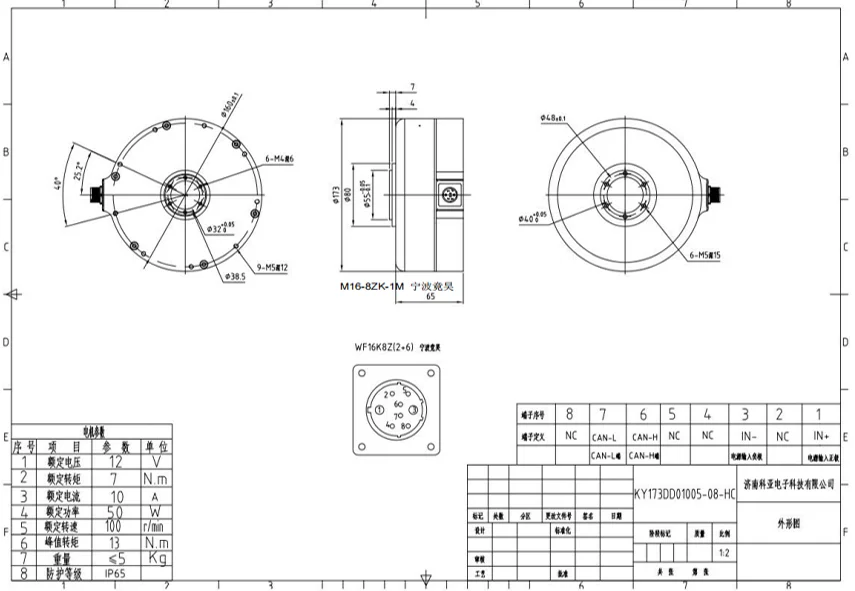

Specification for autopilot motor model KY173DD01005-08-HC

Note: Please kindly take note for this version of motor, it only supports CAN control signal. If you need a motor which supports both CAN and RS232 control signals, please leave message with us.

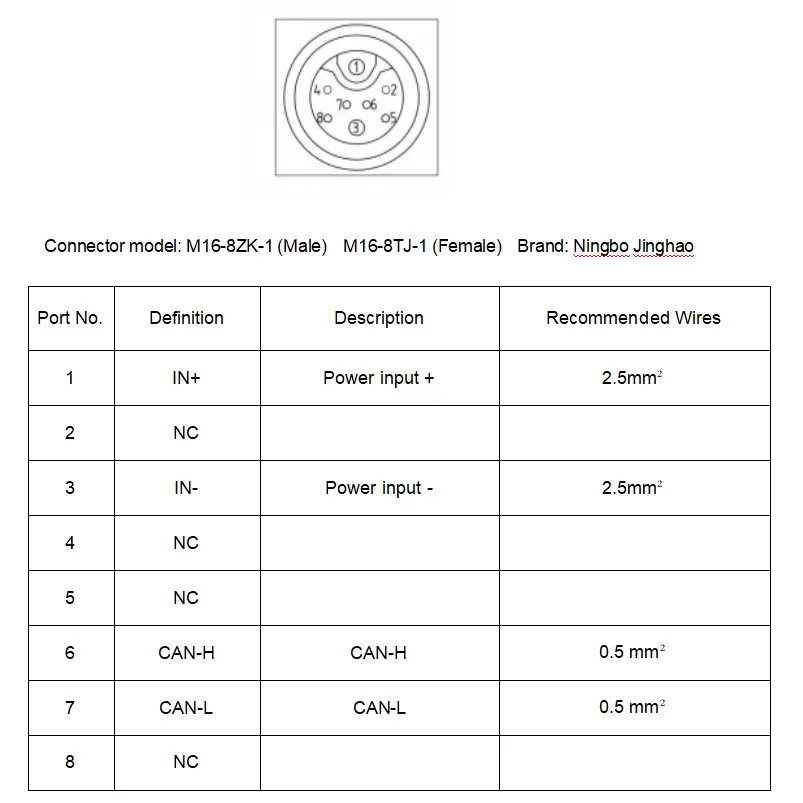

Wiring Definition

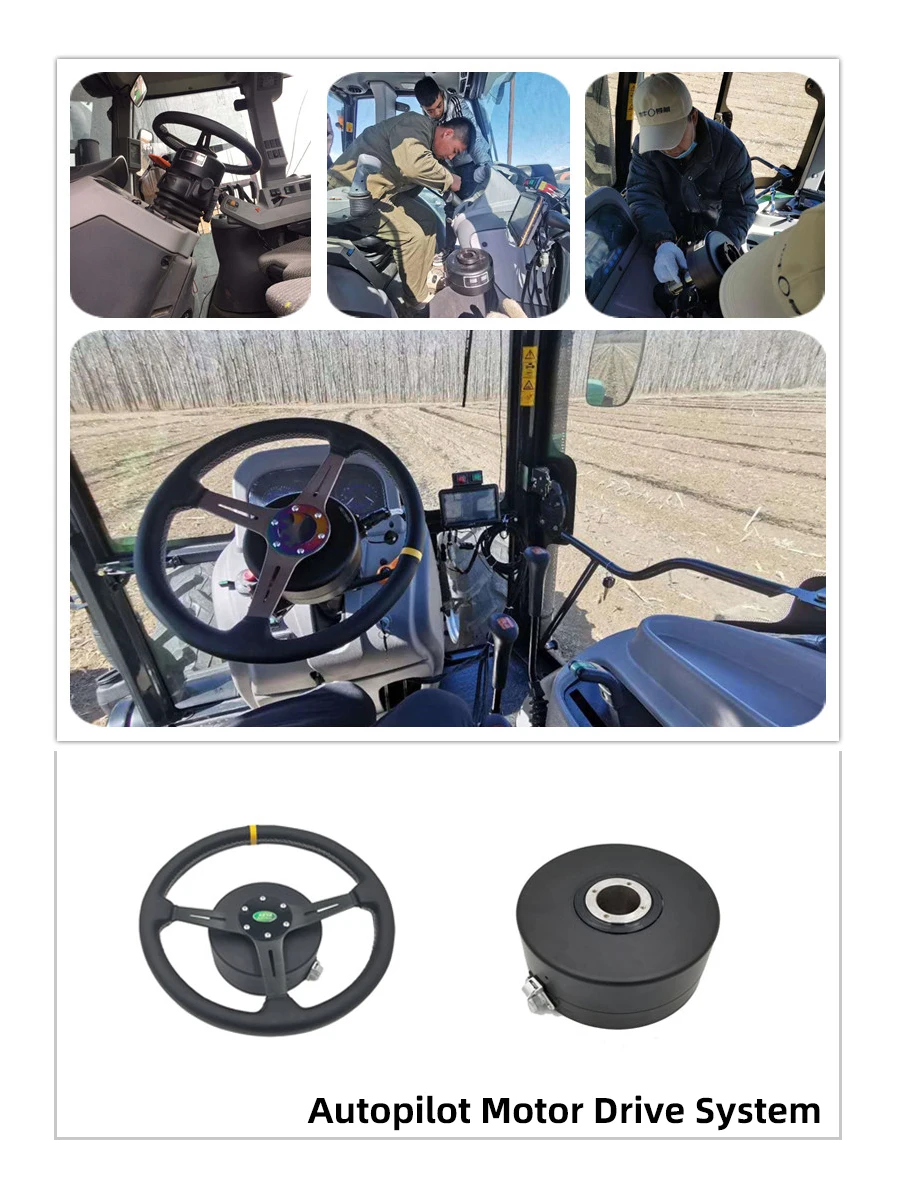

Products Application Cases Display

Company Profile

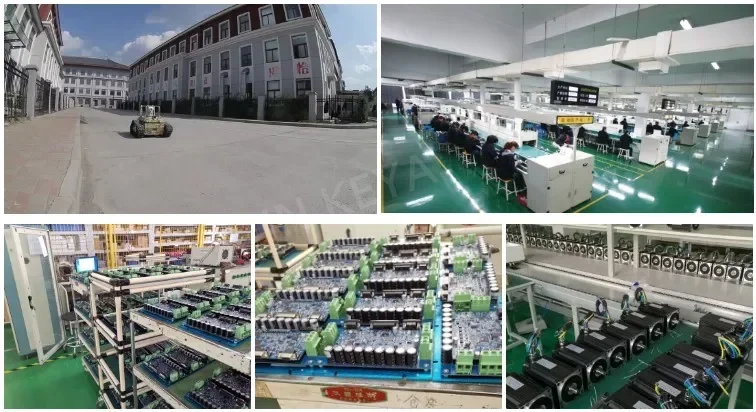

Jinan Keya Electron Science and Technology Co., Ltd, founded in 2003, has been trading in the research &development,

manufacturing and sales of DC motor and control system for 20 years. The company set technology, talent, management

and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to more than 80 countries and regions, incl. US, UK, France, Austria, Germany, Netherland, Poland, Japan, South Korea, Thailand, India, Turkey and Brazil etc.

Packing & Delivery

To ensure a smooth international delivery and cost-effective experience for you, please review our policies below:

••Shipping: Your orders are shipped via UPS Express by default. Should you need a different shipping option, just let us know at checkout.

••Saving on Tariffs: We can help lower your import costs by adjusting the declared value on the customs invoice. Simply message us with your order if you need this service.

••Save More on Bulk Orders: Good news! When you buy 5 or more items at once, we can include the customs clearance fees. This often means you won't pay any extra duties or import taxes—only the standard platform fees.

We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.

Delivery time: 5-7 working days after receive the payment

FAQ
1) Q: What are your main products?

A: We are specialize in BLDC SERVO MOTOR & DRIVER
