FPV Thermal Camera FPV Cameras Uncooled Infrared for Day and Night High Resolution 640*512 for FPV Drones DJI With Analog CVBS

norton

Buy FPV Thermal Camera FPV Cameras Uncooled Infrared for Day and Night High Resolution 640*512 for FPV Drones DJI With Analog CVBS and . Find more then 6090301 products and Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.

Original price was: 641.15$.Current price is: 609.09$.

  • CVBS 640x512 9.1mm
Clear
Added to wishlistRemoved from wishlist 0
Add to compare
SKU: 1005007809101530 Category:

FPV Thermal Camera FPV Cameras Uncooled Infrared for Day and Night High Resolution 640*512 for FPV Drones DJI With Analog CVBS

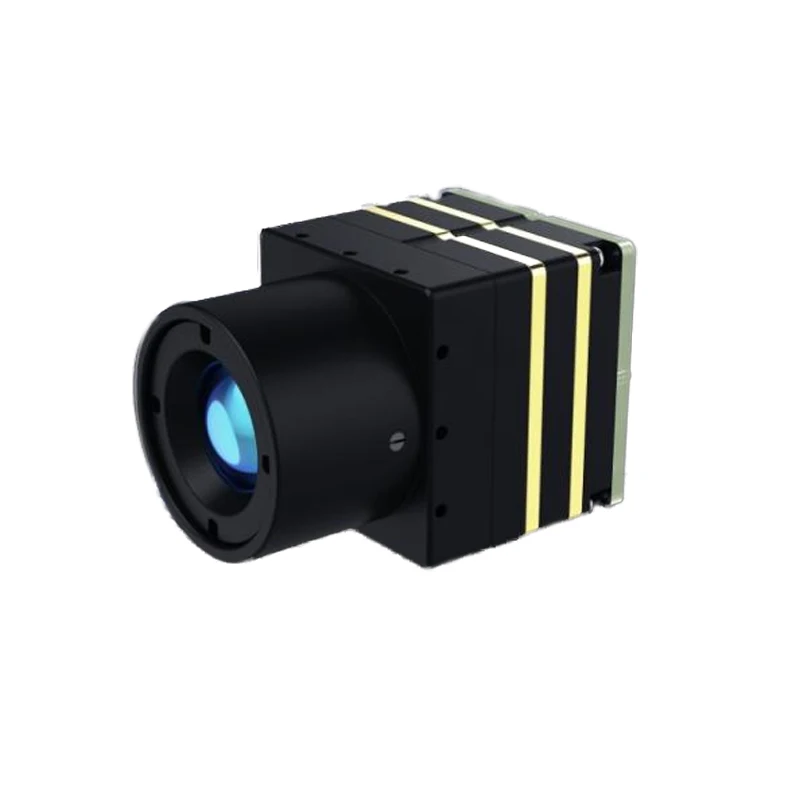

XK-120 This miniature thermal camera combines cutting-edge technology with excellent design and is a highly innovative product. The core part uses vanadium oxide uncooled infrared focal plane detector, which has excellent thermal imaging performance, and can capture the temperature change of the object in real time, providing you with clear and accurate images in the dark.

It is not only a night high-definition video drone camera, but also an adjustable focal length, automatic shutter correction camera equipment. This allows it to adapt to a variety of environments and shooting needs, whether flying a drone in the air or an FPV vehicle on the ground, with ease.

The small size (25*25MM) makes installation a breeze, whether mounted on the drone or handheld use, without worrying about taking up too much space. The resolution can reach 640×512, ensuring the clarity of the shooting picture, so that each frame can present the ultimate detail.

Parameter

Detector type

Uncooled VOx infrared detector

Resolution

640×512

Spectral Band

8~14um

NETD

≤40mK@25℃, F#1.0

Lens

F1.0/9.1mm

Frame Rate

50Hz

Power Consumption

<1.2w

Video Output

PAL

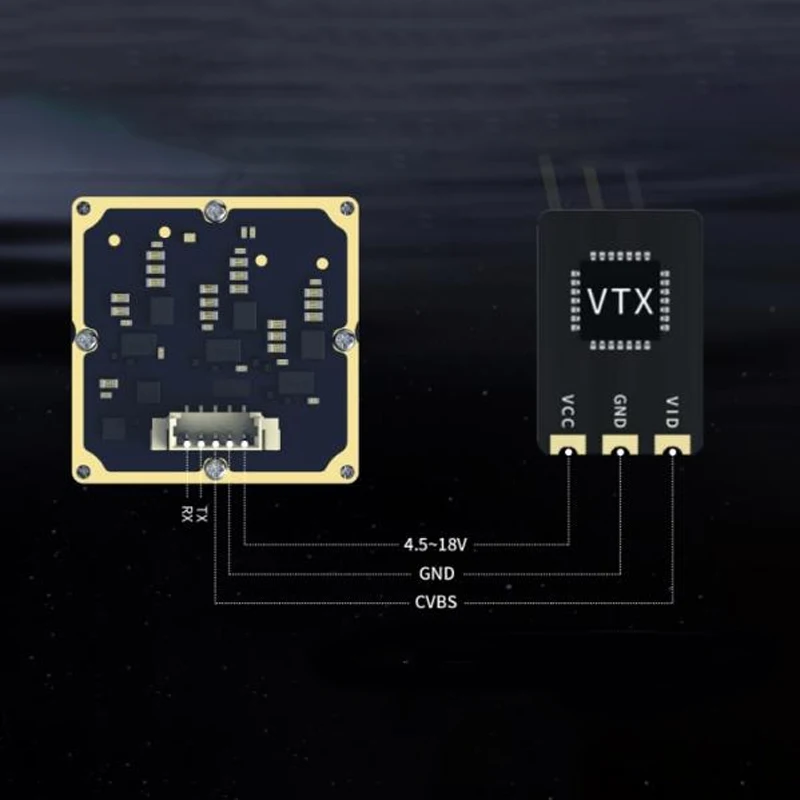

Supply Voltage

4.5v~18v

Temperature

-20℃~55℃

Dimensions

25*25*38mm

Weight

<30 gram

Specification: FPV Thermal Camera FPV Cameras Uncooled Infrared for Day and Night High Resolution 640*512 for FPV Drones DJI With Analog CVBS

Color

CVBS 640×512 9.1mm

Hign-concerned Chemical

None

Size

25*25*38mm

Package

Yes

Weight

<30 gram

Model Number

XK-A120 640 9.1MM 25*25

Compatible Drone Brand

DJI

Brand Name

XINGKAITECH

Origin

Mainland China
